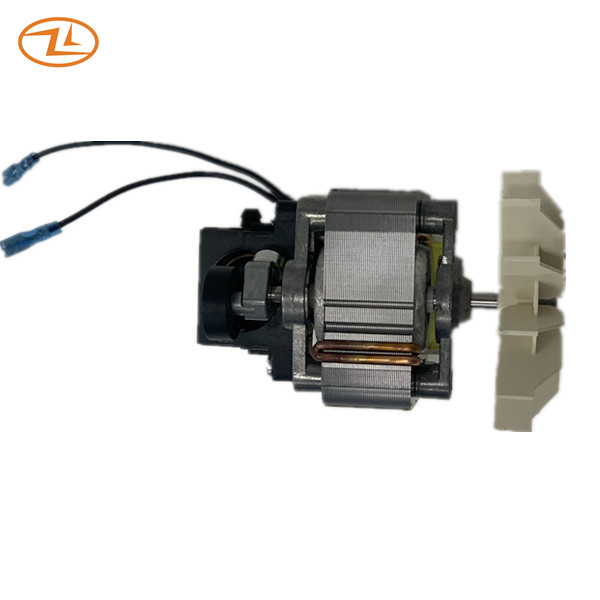

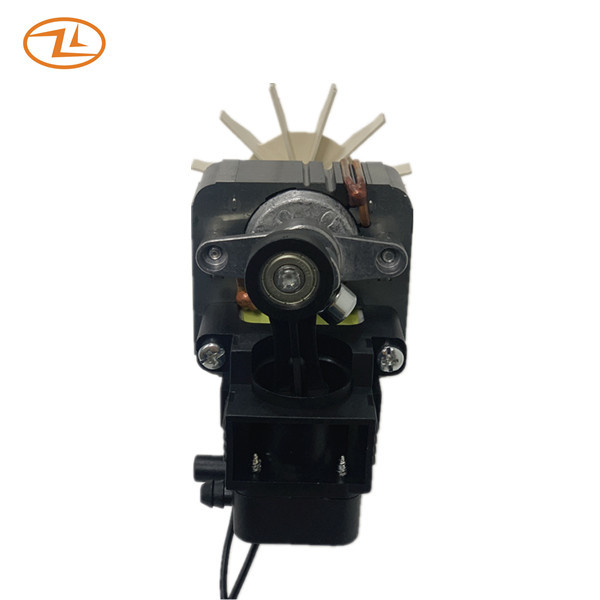

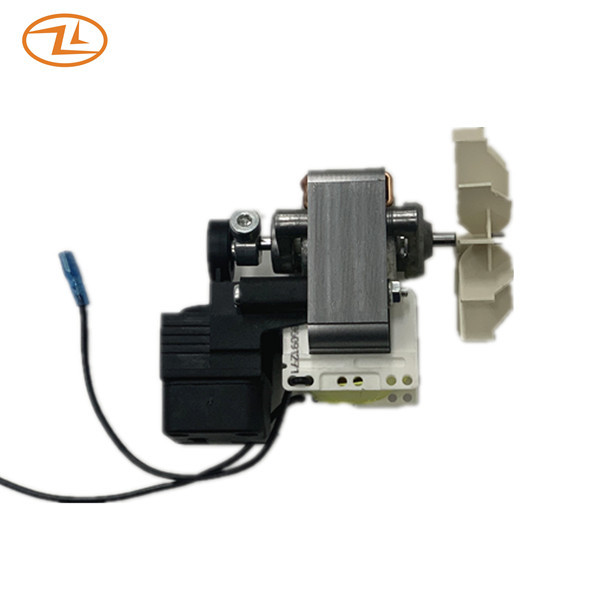

Zhaoli Motor Nebulizer Compressor Motor YJ62/300 230V 50HZ Pure Copper Wire
Specification:
| Rated voltage/frequency V/HZ | 230V 50HZ |
| Rated current A | 0.50A max |
| Rated input power W | 60W max |
| Starting voltage V | 200V max |
| Working air pressure PSI | 9.5PSI min |
| Rated flow rate L/M | 5.5L/M min |
| Max pressure PSI | 34PSI min |
Construction:
| Insulation Class | CL.B |
| Rotation Direction | CCW (view from pump side) |
| Protection | Thermal protector 140℃ |
| Piston bearing | Ball bearing |
| Nozzle direction | Flexible, it can be four directions |
| Cooling fan size | φ75mm |
Drawing:
Application: Compressor nebulizer
