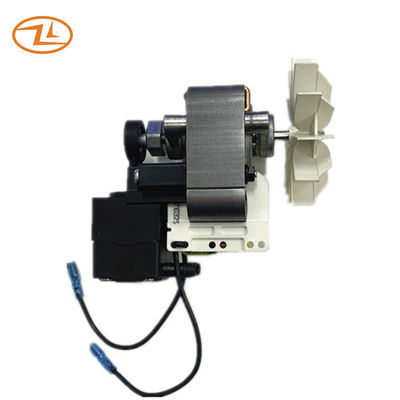

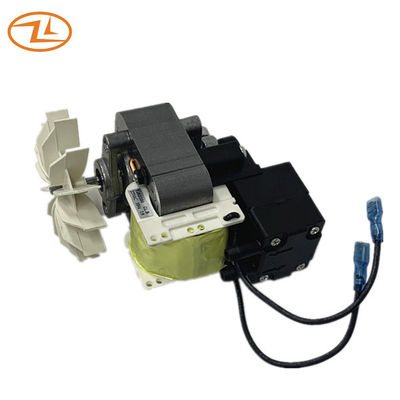

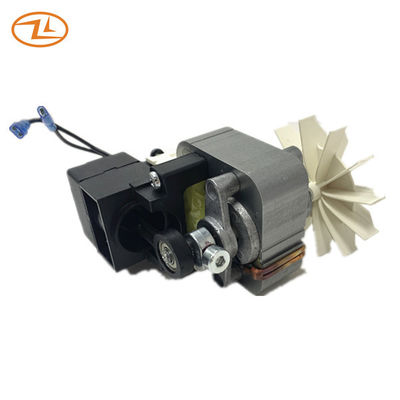

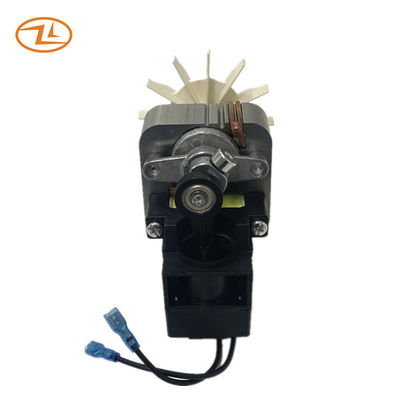

Shaded Pole Motor Air Compressor Nebulizer Motor YJ62-25 220V 50HZ CL.B
Specification:
| Rated voltage/frequency V/HZ | 220V 50HZ |
| Rated current A | 0.52A max |
| Rated input power W | 55W max |
| Starting voltage V | 198V max |
| Working air pressure PSI | 8PSI min |
| Rated flow rate L/M | 4.0L/M min |
| Max pressure PSI | 30PSI min |
| Max flow rate L/M | 14.0L/M |
This kind of pump motor is composed by shaded pole motor with piston pump. A piston pump contains an accurately machined die-casted piston moving in a cylinder normally fitted with inlet and outlet valves.
Protection method: Thermal protectior 130℃
Motor Bearing: both ball bearings
Piston Bearing: ball bearing
Cooling fan size: φ75mm/ φ58mm
Drawing:
Application: Nebulizer
