Powerful Nebulizer Compressor Motor Zhaoli Motor With CE Certification

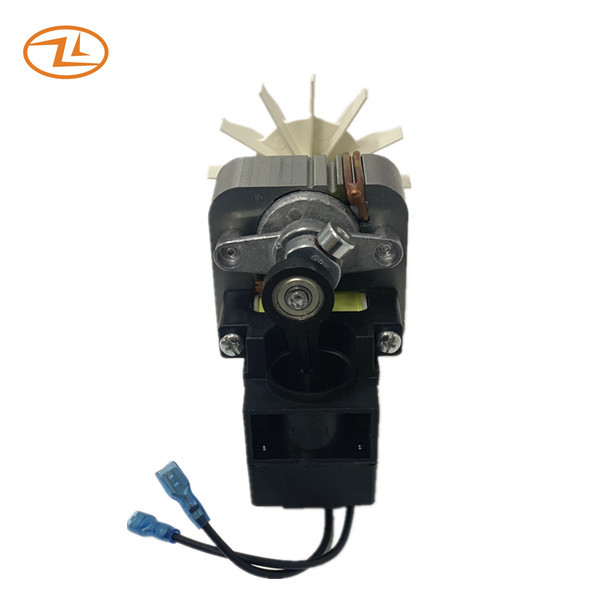

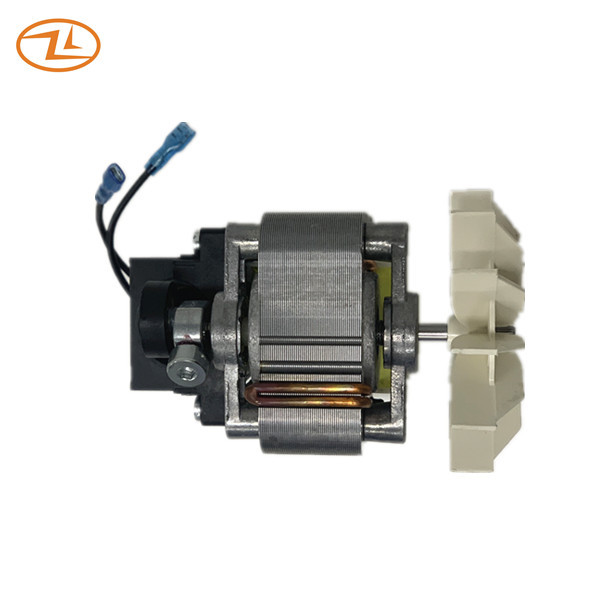

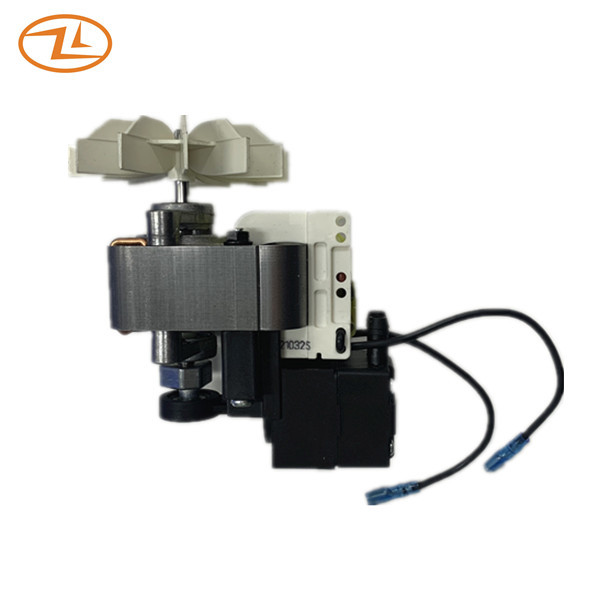

This kind of pump motor is composed by shaded pole motor with piston pump. Most of the parts are produced by our own factory- stack stamping, die-casting, motor shaft, plastic part injection. In this case, we can shorten the lead time and gurantee the parts' quality.
Shaded pole motor is a single-phase induction motor in small ratings made self-starting by flux displacement derived by means of a permanently short-circuited, high-resistance winding or loop encircling a fraction of the pole pitch or pole piece.
A piston pump contains an accurately machined die-casted piston moving in a cylinder normally fitted with inlet and outlet valves.
Specification:
| Rated voltage/frequency V/HZ | 220V 50HZ |
| Rated current A | 0.52A max |
| Rated input power W | 55W max |
| Starting voltage V | 198V max |
| Insulation Class | CL.B |
| Working air pressure PSI | 8PSI min |
| Rated flow rate L/M | 4.0L/M min |
| Max pressure PSI | 30PSI min |
| Max flow rate L/M | 14.0L/M |
| Rotation Direction | CCW (view from pump side) |
| Protection | Thermal protector 130℃ |
| Piston bearing | Ball bearing |
| Nozzle direction | Flexible, it can be four directions |
| Insulation resistance | The cold insulation resistance between stator and terminal shall be more than 100MΩ(tested by DC 500V megger) |
| Dielectric strength | It shall be enough to withstand with application AC 1800V/2mA/1s. No puncture. |
| Life | At rated load, 20 mins on, 40 mins off as one cycle. 1000 hours min. |
Drawing:
Application: Nebulizer
