Single Phase Nebulizer Compressor Motor 25mm 68W With Flexible Nozzle

2000pcs
MOQ
Single Phase Nebulizer Compressor Motor 25mm 68W With Flexible Nozzle
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Compressor Nebulizer Motor
Rated Voltage: 230V 50HZ
Stack Size: 62.5x62.5mm
Lamination: 25mm
Phase: Single Phase
Number Of Poles: Two
Insulation Class: CL.B
Bearing: Ball Bearing Or Sleeve Bearings Optional
Pump Nozzle: Direction Is Flexible
Rated Load: Atomizing Chamber
Time Rating: S1 (continuous)
Packing: Customized Packing
Printing: Customized Printing
Application: Compressor Nebulizer/Vacuum Use/Inhaler
High Light:

25mm Nebulizer Compressor Motor

,

68W Nebulizer Compressor Motor

,

VDE Single Phase Compressor Motor

Basic Infomation
Place of Origin: China
Brand Name: Zhaoli
Certification: UL, CUL, CE, VDE, CCC, ROHS, REACH
Model Number: YJ62/300
Payment & Shipping Terms
Packaging Details: cartons + wooden pallet
Delivery Time: 20-40 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300,000pcs per day
Product Description

Nebulizer Compressor Motor 25mm Zhaoli Motor Nozzle Direction Flexible YJ62/300



Construction:

Insulation Class CL.B
Rotation Direction CCW (view from pump side)
Protection Thermal protector 150℃
Piston bearing Ball bearing
Nozzle direction Flexible, it can be four directions



Specification:

Rated voltage/frequency V/HZ 230V 50HZ
Rated current A 0.70A max
Rated input power W 68W max
Starting voltage V 200V max
Working air pressure PSI 10PSI min
Rated flow rate L/H 300L/H min
Max pressure PSI 30PSI min
Insulation resistance The cold insulation resistance between stator and terminal shall be more than 100MΩ(tested by DC 500V megger)
Dielectric strength It shall be enough to withstand with application AC 1800V/2mA/1s. No puncture.


Drawing:

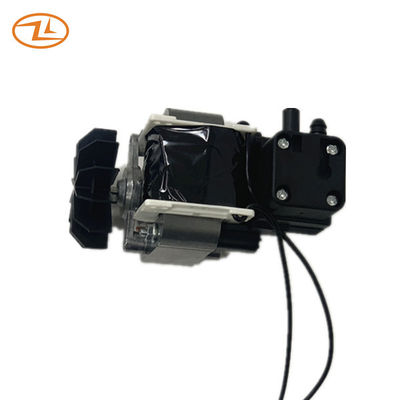

Single Phase Nebulizer Compressor Motor 25mm 68W With Flexible Nozzle 0

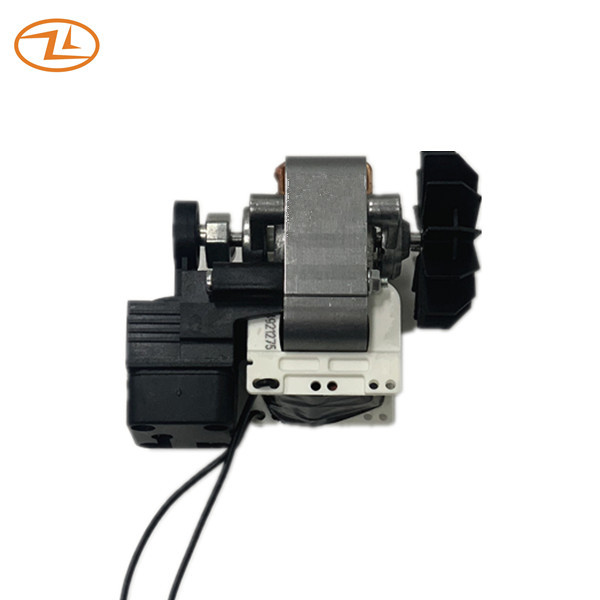

Single Phase Nebulizer Compressor Motor 25mm 68W With Flexible Nozzle 1

Application: Compressor nebulizer

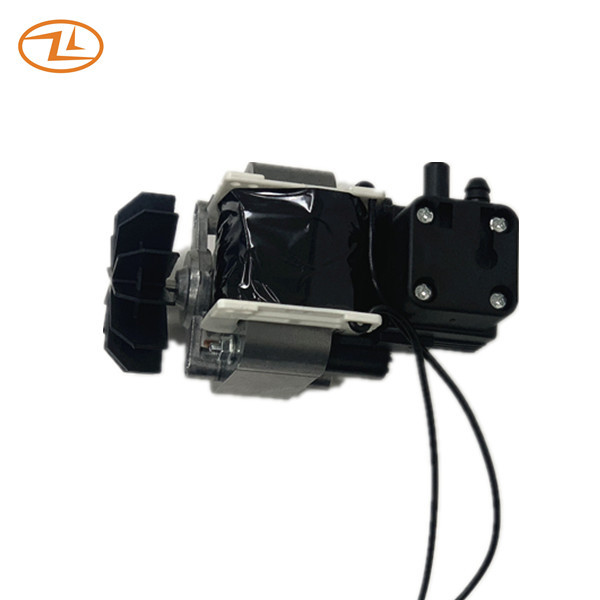

Single Phase Nebulizer Compressor Motor 25mm 68W With Flexible Nozzle 2
