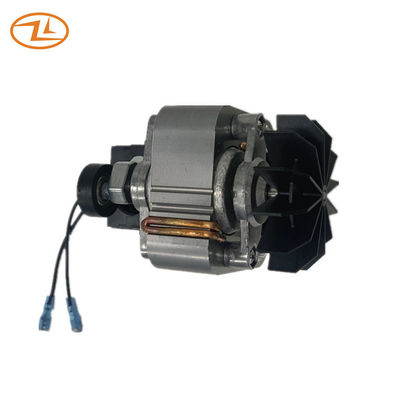

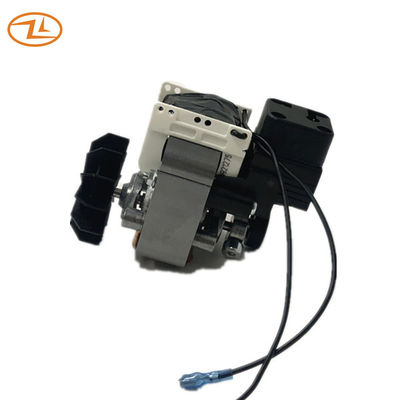

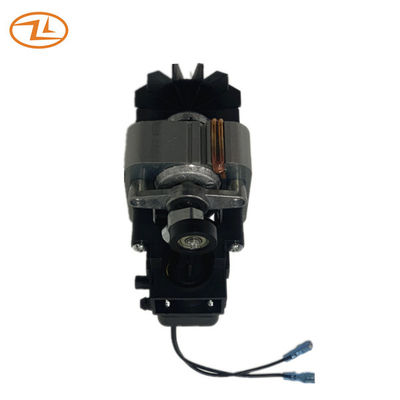

Nebulizer Motor Zhaoli Motor YJ62/300 230V 50HZ Ball Bearing Copper Wire
This kind of pump is piston compressor pump. Mainly it is used for compressor nebulizer, automizer, suction pump.
Specification:
| Rated voltage/frequency V/HZ | 230V 50HZ |
| Rated current A | 0.70A max |
| Rated input power W | 68W max |
| Starting voltage V | 200V max |
| Working air pressure PSI | 10PSI min |
| Rated flow rate L/H | 300L/H min |
| Max pressure PSI | 30PSI min |
| Protection | Thermal protector 150℃ |
| Piston bearing | Ball bearing |
| Nozzle direction | Flexible, it can be four directions |
| Insulation resistance | The cold insulation resistance between stator and terminal shall be more than 100MΩ(tested by DC 500V megger) |
| Dielectric strength | It shall be enough to withstand with application AC 1800V/2mA/1s. No puncture. |
| Life | At rated load, 20 mins on, 40 mins off as one cycle. 1000 hours min. |
Drawing:
Application: Piston air compressor nebulizer
