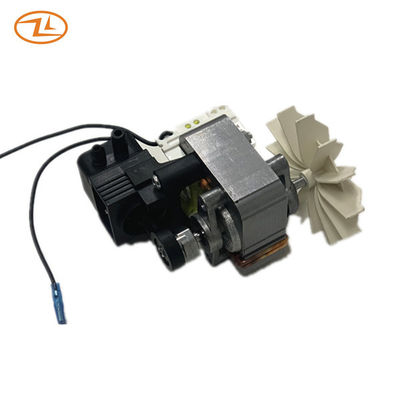

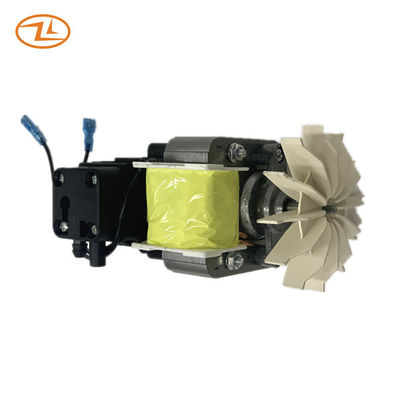

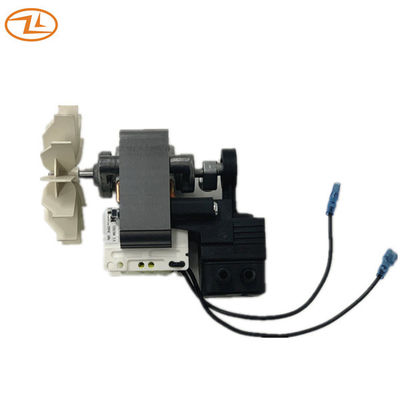

Long Life 25mm Zhaoli Motor Nebulizer Motor YJ62/25 220V 50HZ Ball Bearing
This kind of pump motor is composed by shaded pole motor with piston pump. Most of the parts are produced by our own factory- stack stamping, die-casting, motor shaft, plastic part injection. In this case, we can shorten the lead time and gurantee the parts' quality.
Specification:
| Rated voltage/frequency V/HZ | 220V 50HZ |
| Rated current A | 0.50A max |
| Rated input power W | 60W max |
| Starting voltage V | 190V max |
| Insulation Class | CL.B |
| Working air pressure PSI | 9.5PSI min |
| Rated flow rate L/M | 5.5L/M min |
| Max pressure PSI | 34PSI min |
| Rotation Direction | CCW (view from pump side) |
| Protection | Thermal protector 140℃ |
| Piston bearing | Ball bearing |
| Nozzle direction | Flexible, it can be four directions |
| Insulation resistance | The cold insulation resistance between stator and terminal shall be more than 100MΩ(tested by DC 500V megger) |
| Dielectric strength | It shall be enough to withstand with application AC 1800V/2mA/1s. No puncture. |
| Life | At rated load, 20 mins on, 40 mins off as one cycle. 1000 hours min. |
Drawing:
Application: Compressor nebulizer
