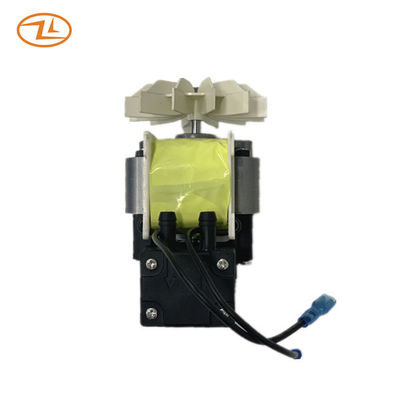

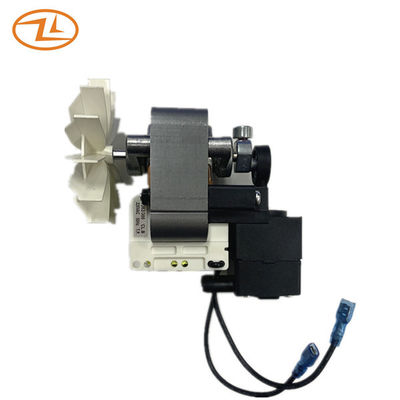

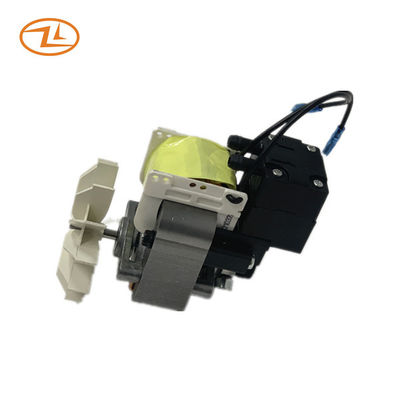

Nebulizer Pump Compressor Motor With Pump Shaded Pole Motor YJ62-25 220V 50HZ
This kind of pump motor is composed by shaded pole motor with piston pump. Shaded pole motor is a single-phase induction motor in small ratings made self-starting by flux displacement derived by means of a permanently short-circuited, high-resistance winding or loop encircling a fraction of the pole pitch or pole piece.
A piston pump contains an accurately machined die-casted piston moving in a cylinder normally fitted with inlet and outlet valves.
Specification:
| Rated voltage/frequency V/HZ | 220V 50HZ |
| Rated current A | 0.52A max |
| Rated input power W | 55W max |
| Starting voltage V | 198V max |
| Working air pressure PSI | 8PSI min |
| Rated flow rate L/M | 4.0L/M min |
| Max pressure PSI | 30PSI min |
| Max flow rate L/M | 14.0L/M |
| Insulation resistance | The cold insulation resistance between stator and terminal shall be more than 100MΩ(tested by DC 500V megger) |
| Dielectric strength | It shall be enough to withstand with application AC 1800V/2mA/1s. No puncture. |
| Life | At rated load, 20 mins on, 40 mins off as one cycle. 1000 hours min. |
Construction:
| Insulation Class | CL.B |
| Rotation Direction | CCW (view from pump side) |
| Protection | Thermal protector 130℃ |
| Piston bearing | Ball bearing |
| Nozzle direction | Flexible, it can be four directions |
| Cooling fan size | φ75mm |
Drawing:
Application: Nebulizer
