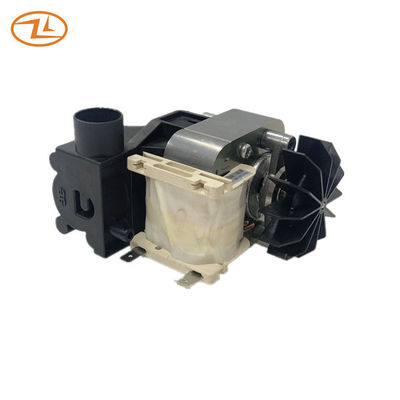

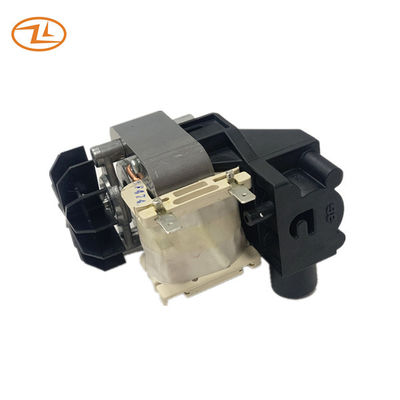

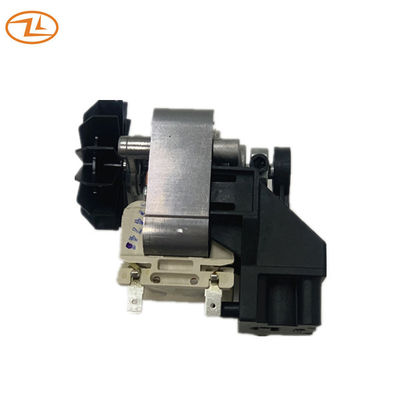

YJ62/300 Air Compressor Pump For Nebulizer Use 230V 50HZ Ball Bearings Pure Copper
This kind of pump motor is composed by shaded pole motor with piston pump. A piston pump contains an accurately machined die-casted piston moving in a cylinder normally fitted with inlet and outlet valves.
Construction:
| Insulation Class | CL.B |
| Rotation Direction | CCW (view from pump side) |
| Protection | Thermal protector 150℃ |
| Piston bearing | Ball bearing |
| Nozzle direction | Flexible, it can be four directions |
| Cooling fan size | Φ58mm |
Specification:
| Rated voltage/frequency V/HZ | 230V 50HZ |
| Rated input power W | 48W max |
| Starting voltage V | 187V max |
| Rated speed RPM | 2500RPM min |
| Working air pressure PSI | 0.57 bar min |
| Working flow rate L/M | 4.5L/M min |
| Max pressure PSI | 3 +/-0.5 bar |
| Max flow rate L/M | 15+/- 2 L/M |
Insulation resistance: The cold insulation resistance between stator and terminal shall be more than 100MΩ(tested by DC 500V megger)
Dielectric strength: It shall be enough to withstand with application AC 1800V/2mA/1s. No puncture.
Drawing:
Application: Nebulizer Pump Motor
