Low Noise Nebulizer Compressor Motor Ball Bearings Pure Copper With Special Pump

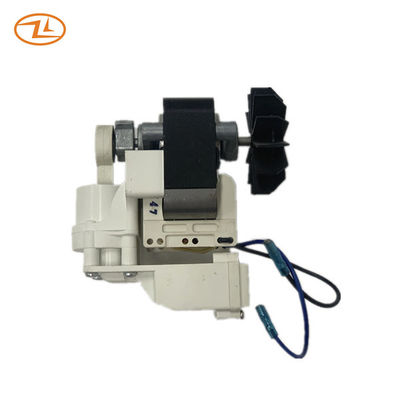

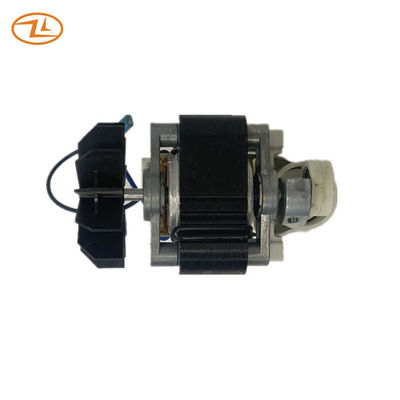

This kind of pump motor is composed by shaded pole motor with piston pump. Most of the parts are produced by our own factory- stack stamping, die-casting, motor shaft, plastic part injection. In this case, we can shorten the lead time and gurantee the parts' quality.
Specification:
| Rated voltage/frequency V/HZ | 220V 50HZ |
| Rated current A | 0.65A max |
| Rated input power W | 60W max |
| Starting voltage V | 187V max |
| Rated speed RPM | 2500RPM min |
| Working air pressure PSI | 14 PSI min |
| Working flow rate L/M | 4.5L/M min |
| Max pressure PSI | 32PSI min |
| Max flow rate L/M | 14.5 L/M min |
Drawing:
Application: Air compressor nebulizer
