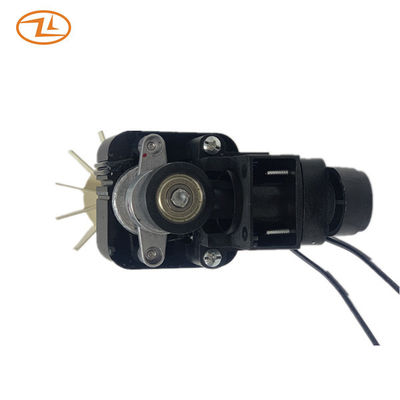

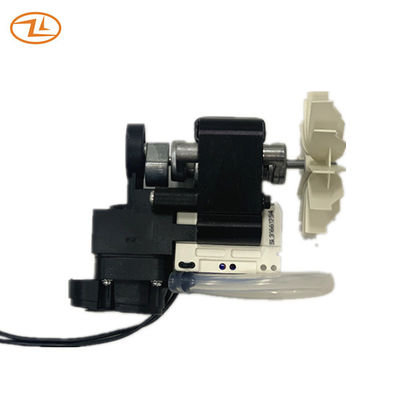

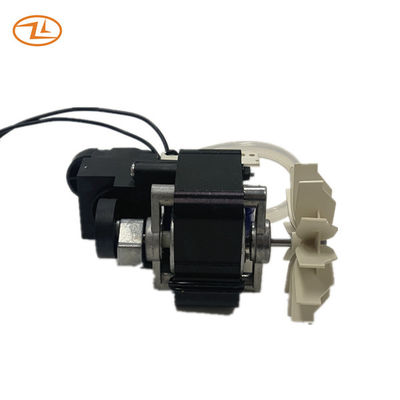

Nebulizer Compressor Motor With Thermal Protector YJ62/300B 120V 60HZ Ball Bearings
This piston compressor pump is designed with a special pump. A piston pump contains an accurately machined die-casted piston moving in a cylinder normally fitted with inlet and outlet valves.
Specification:
| Rated voltage/frequency V/HZ | 120V 60HZ |
| Rated current A | 1.20A max |
| Rated input power W | 70W max |
| Starting voltage V | 114V max |
| Rated speed RPM | 2900RPM min |
| Working air pressure PSI | 10PSI min |
| Working flow rate L/M | 6.5L/M min |
| Max pressure PSI | 35PSI min |
| Max flow rate L/M | 15 L/M min |
| Insulation Class | CL.B |
| Rotation Direction | CCW (view from pump side) |
| Protection | Thermal protector 130℃ |
| Piston bearing | Ball bearing |
| Nozzle direction | Fixed with tubes |
| Cooling fan size | Φ75mm |
| Insulation resistance | The cold insulation resistance between stator and terminal shall be more than 100MΩ(tested by DC 500V megger) |
| Dielectric strength | It shall be enough to withstand with application AC 1800V/2mA/1s. No puncture. |
| Life | At rated load, 20 mins on, 40 mins off as one cycle. 1000 hours min. |
Drawing:
Application: Air compressor nebulizer
