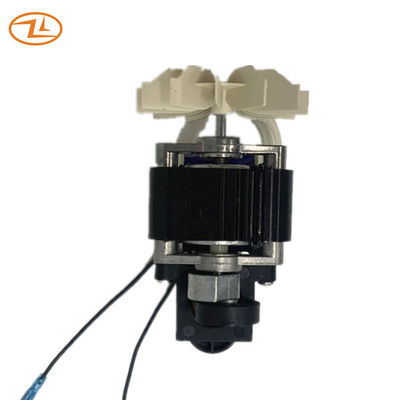

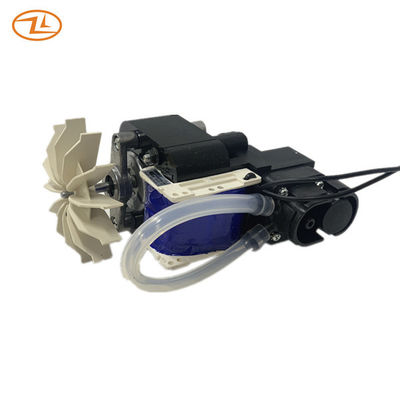

YJ62-30 Nebulizer Pump Motor Nebulizer Compressor 120V 60HZ Ball Bearings Long Life
Specification:
| Rated voltage/frequency V/HZ | 120V 60HZ |
| Rated current A | 1.20A max |
| Rated input power W | 70W max |
| Starting voltage V | 114V max |
| Rated speed RPM | 2900RPM min |
| Working air pressure PSI | 10PSI min |
| Working flow rate L/M | 6.5L/M min |
| Max pressure PSI | 35PSI min |
| Max flow rate L/M | 15 L/M min |
Insulation resistance: The cold insulation resistance between stator and terminal shall be more than 100MΩ(tested by DC 500V megger)
Dielectric strengt: It shall be enough to withstand with application AC 1800V/2mA/1s. No puncture.
Life: At rated load, 20 mins on, 40 mins off as one cycle. 1000 hours min.
Drawing:
Application: Compressor nebulizer
