Compressor Motor Pump Motor For Suction Machine Flexible Nozzle Direction

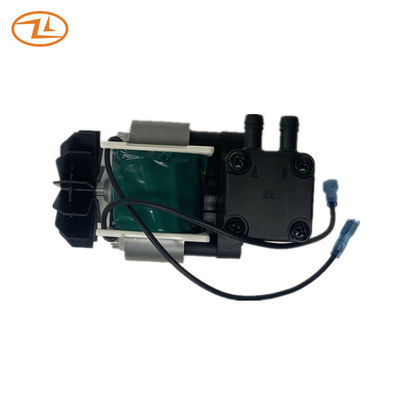

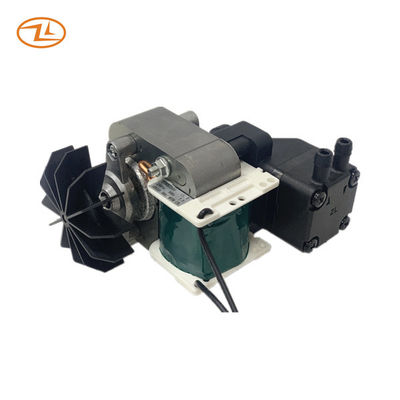

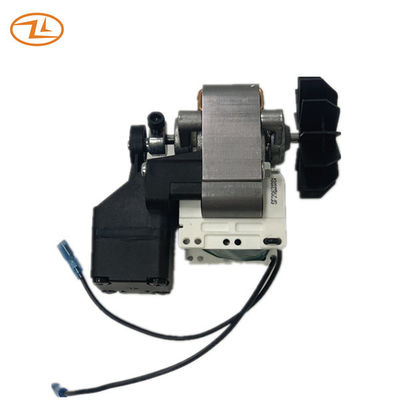

This kind of pump motor is composed by shaded pole motor with piston pump. Shaded pole motor is a single-phase induction motor in small ratings made self-starting by flux displacement derived by means of a permanently short-circuited, high-resistance winding or loop encircling a fraction of the pole pitch or pole piece. A piston pump contains an accurately machined die-casted piston moving in a cylinder normally fitted with inlet and outlet valves.
Specification:
| Rated voltage/frequency V/HZ | 220V 50HZ |
| Rated current A | 0.55A max |
| Rated input power W | 58W max |
| Starting voltage V | 198V max |
| Rated speed RPM | 2500RPM min |
| Working air pressure PSI | 12PSI min |
| Working flow rate L/M | 5L/M min |
| Max pressure PSI | 30PSI min |
| Max flow rate L/M | 14 L/M min |
Drawing:
Application: Compressor Nebulizer, Suction machine
