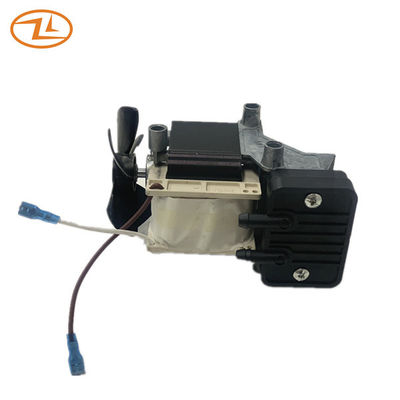

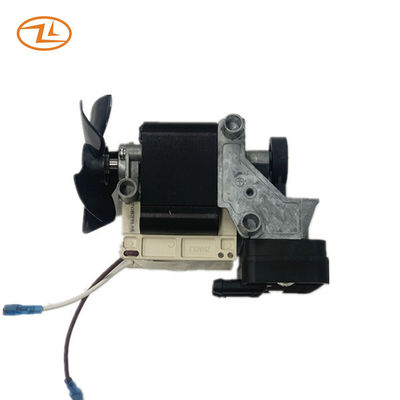

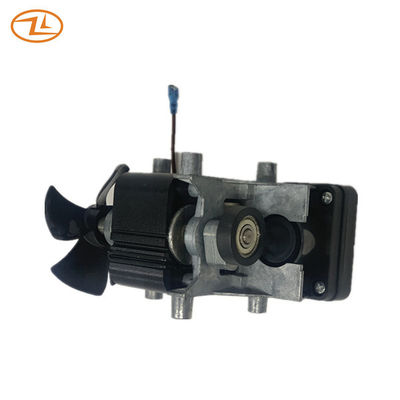

YJ62/400 Nebulizer Compressor Motor Big Suction Pump Motor 230V 50HZ Ball Bearings
A piston pump contains an accurately machined die-casted piston moving in a cylinder normally fitted with inlet and outlet valves. It can be used for compressing the air out or suck the air in.
Specification:
| Rated voltage/frequency V/HZ | 220-230V 50HZ |
| Rated current A | 0.63A max |
| Rated input power W | 75W max |
| Starting voltage V | 198V max |
| Rated speed RPM | 2400RPM min |
| Working air pressure Kpa | 120-150Kpa |
| Working flow rate L/M | 7L/M min |
| Max pressure PSI | 45PSI min |
| Max flow rate L/M | 18 L/M min |
| Insulation Class | CL.B |
| Rotation Direction | CCW (view from pump side) |
| Protection | Thermal protector 150℃ |
| Piston bearing | Ball bearing |
| Nozzle direction | Flexible, it can be four directions |
| Cooling fan size | Φ82mm |
| Insulation resistance | The cold insulation resistance between stator and terminal shall be more than 100MΩ(tested by DC 500V megger) |
| Dielectric strength | It shall be enough to withstand with application AC 1800V/2mA/1s. No puncture. |
| Life | At rated load, 20 mins on, 40 mins off as one cycle. 1000 hours min. |
Drawing:
Application: Compressor Nebulizer, Suction machine
