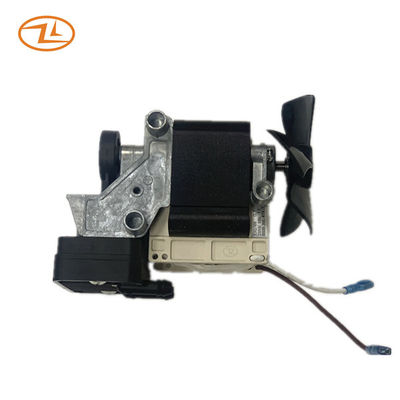

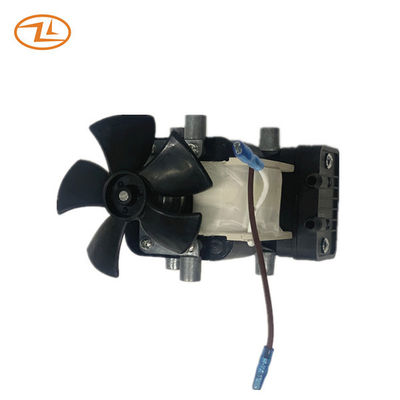

High Pressure And Flow Rate Nebulizer Compressor Motor 40mm Thick Zhaoli Motor
This kind of pump motor is composed by shaded pole motor with piston pump. Most of the parts are produced by our own factory- stack stamping, die-casting, motor shaft, plastic part injection. In this case, we can shorten the lead time and gurantee the parts' quality.
Specification:
| Rated voltage/frequency V/HZ | 220-230V 50HZ |
| Rated current A | 0.63A max |
| Rated input power W | 75W max |
| Starting voltage V | 198V max |
| Rated speed RPM | 2400RPM min |
| Working air pressure PSI | 120-150Kpa |
| Working flow rate L/M | 7L/M min |
| Max pressure PSI | 45PSI min |
| Max flow rate L/M | 18 L/M min |
Insulation resistance: The cold insulation resistance between stator and terminal shall be more than 100MΩ(tested by DC 500V megger)
Dielectric strength: It shall be enough to withstand with application AC 1800V/2mA/1s. No puncture.
Drawing:
Application: Compressor Nebulizer, Suction machine
