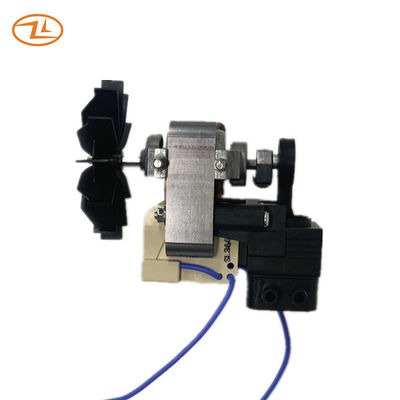

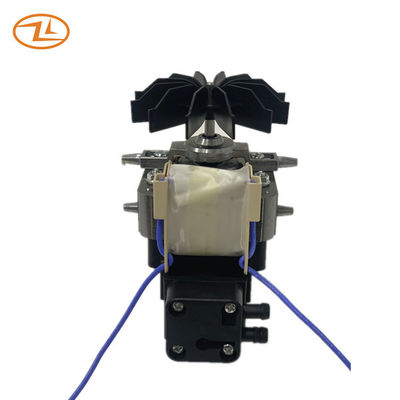

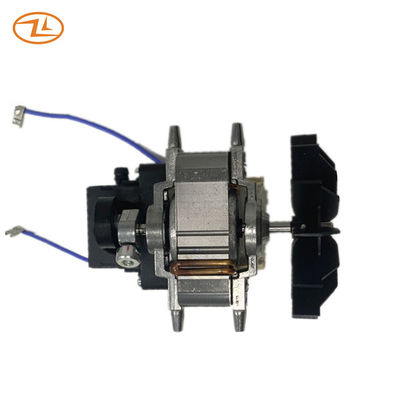

YJ62/200 Nebulizer Compressor Motor Air Pump 220-230V 50HZ Zhaoli Motor
Working Condition:
| ITEM | SPECS |
| Rated voltage/frequency V/HZ | 220-230VAC 50HZ |
| Working voltage range V | 220-230VAC +/- 10% |
| Insulation class | CL.H |
| Working Temp | 0 ~ 40℃ |
| Storage Temp | -20 ~ 60℃ |
| Working humidity | 20 %~ 85% RH |
| Storage humidity | 10 %~ 95% RH |
Performance:
| ITEM | SPECS |
| Power consumption | 230V 50HZ <110VAC |
| Max pressure Kpa | >130Kpa |
| Max flow rate L/M | >9L/M |
| Working pressure Kpa | 220V 50HZ >50Kpa |
| Dielectric strength | It shall be enough to withstand with application AC1500V/1s/0.5mA. No puncture. |
| Thermal fuse | 150℃ |
| Vibration | <0.5mm |
| Safety | Under locked-rotor condition, no fire, no flame. |
| Life | >1000hours |
| Environmental impact | Conform to RoHS |
Drawing:
Application: Compressor Nebulizer
