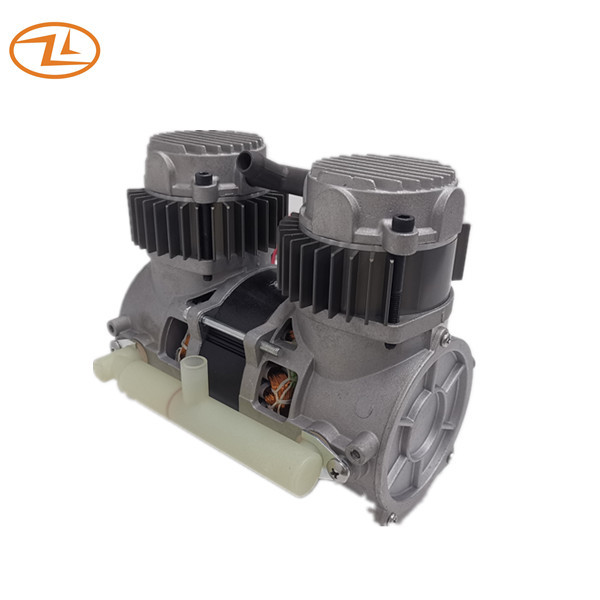

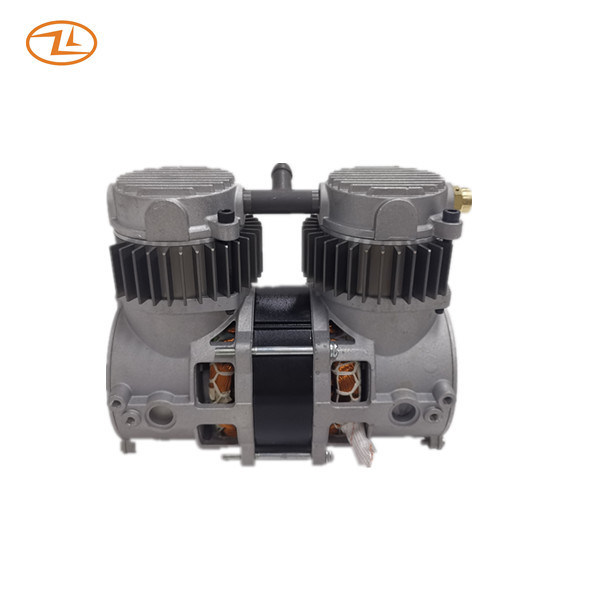

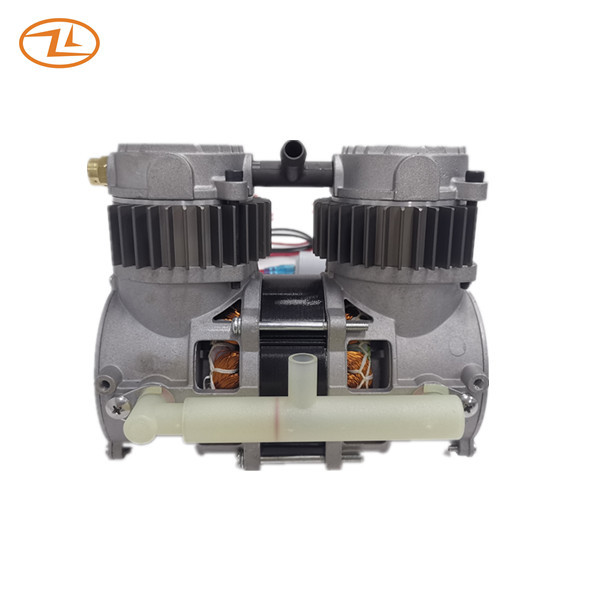

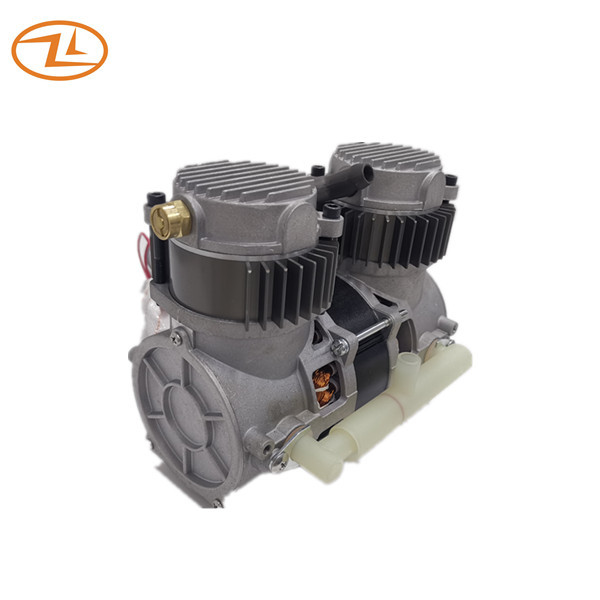

Oilless Air Compressor For Medical Use Vacumn Use 140Kpa High Performance Piston
Oilless air compressor features:
Oil-less operation(clean air stream, less maintenance)
Brass valves(optimum life, consistent performance, corrosion resistance)
High performance piston seal (optimum life)
Die-cast aluminum components(strong, lightweight, durable)
Thin wall, hard coated aluminum cylinder(maxium heat transfer)
Wetted parts treated for corrosion resistance
Dynamically balanced(low operation vibration)
Pressure relief valve included
Twin fans provide cooling air for the motor and cylinders
Low noise
Continous duty
Specification:
| Model | ZL300D-N70-140-02 |
| Rated voltage/frequency V/HZ | 220V/ 50HZ |
| Rated input power W | 300W |
| Starting voltage V | 200V max |
| Working air pressure PSI | 140kpa |
| Rated flow rate L/H | 70L/M |
| Protection | Thermal protector 145℃ |
| Piston bearing | Permanently lubricated ball bearing |
| Nozzle direction | Flexible |
| Insulation resistance | The cold insulation resistance shall be more than 100MΩ(tested by DC 500V megger) |
| Dielectric strength | It shall be enough to withstand with application AC 1800V/2mA/1s. No puncture. |
Drawing:
Application: Suitable for Vacuum adsorption, Laboratory, Medical and medical cosmetology, Vacuum packaging, Electronic equipment, Automation, Textile, Chemical... and so on.
- Often for Oxygen generator 5L
