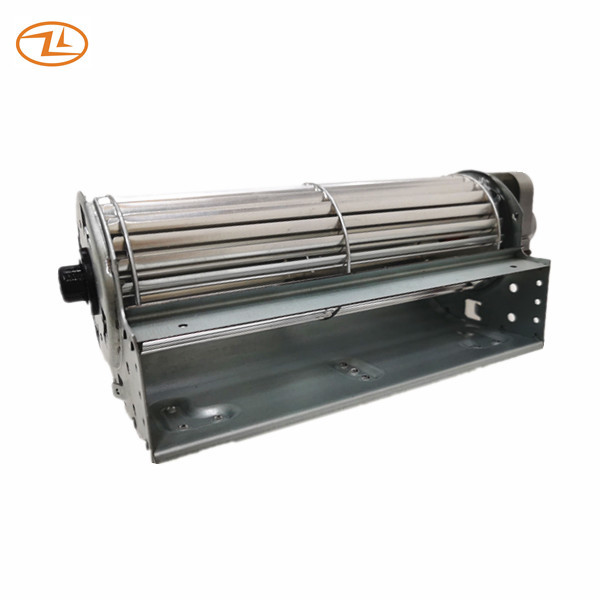

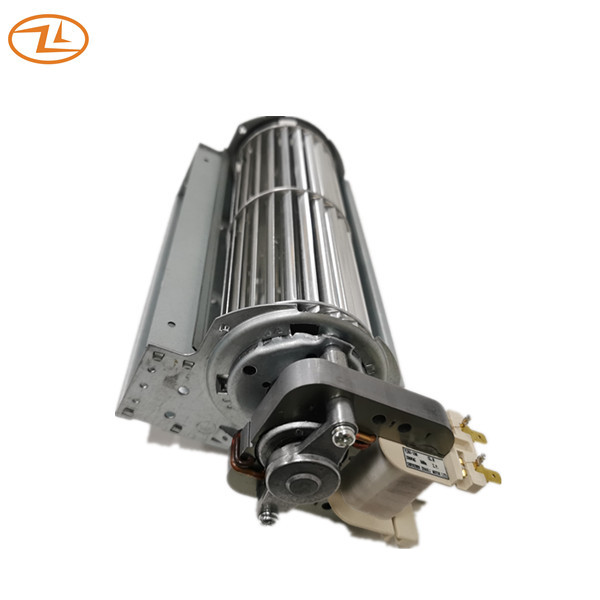

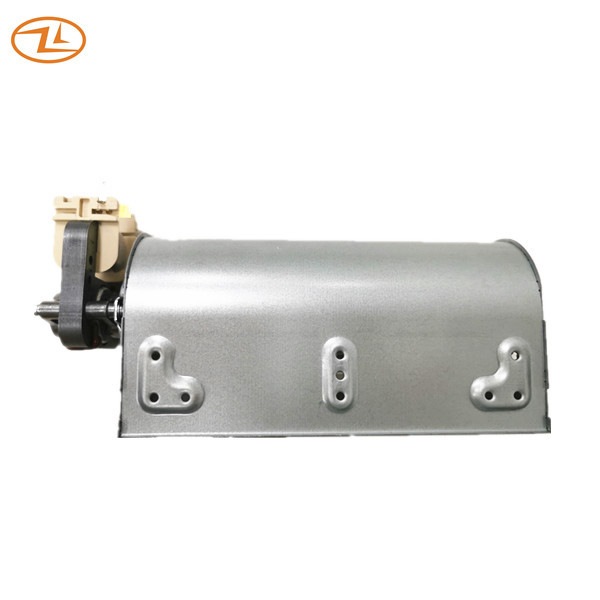

Tangential Fan Cross Flow Fan For Oven Air Curtain Heater Fan Use 220V 50HZ
Cross flow fan
The cross-flow air blower is generally made up of drive motors, blowers, shells, operating support connectors, etc. The freely designed mouse cage blower cylinder processed by blades, rotor and the shell form the air flue. The special structure can make the air pass the rotor twice in the centrifugal direction.
Specification:
| Motor Type | AC shaded pole motor YJ61-10 | |
| Blower size | 60X180mm | |
| Rated voltage/frequency | 220V 50HZ | |
| High speed | Rated current(no load) | 0.144±10%A |
| Rated power(no load) | 19.5±10%W | |
| Rated speed (no load) | 2700±200RPM | |
| Low speed | Rated current(no load) | 0.80±10%A |
| Rated power(no load) | 12.2±10%W | |
| Rated speed (no load) | 2400±200RPM | |
| High speed | Starting voltage (on load) | <= 187V |
| Rated current (on load) | 0.179±10%A | |
| Rated power(on load) | 26±10%W | |
| Rated speed (on load) | 1500±200RPM | |
| Low speed | Rated current (on load) | 0.95±10%A |
| Rated power(on load) | 14±10%W | |
| Rated speed (on load) | 900±200RPM | |
| Rising Temp. | IEC60335-1 | |
| Lock Temp. | IEC60335-1 | |
| High-voltage test | 1800VAC/2mA/1S | |
| Cold insulation resistance | >= 100MΩ | |
| End play | 1.0mm max |
|
Drawing:
Application:
Oven, Heater Fan, Electric fireplace, Air curtain
