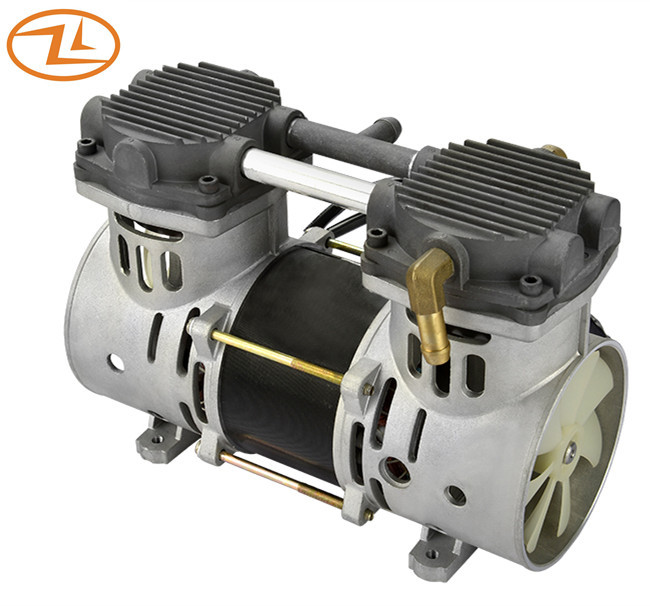

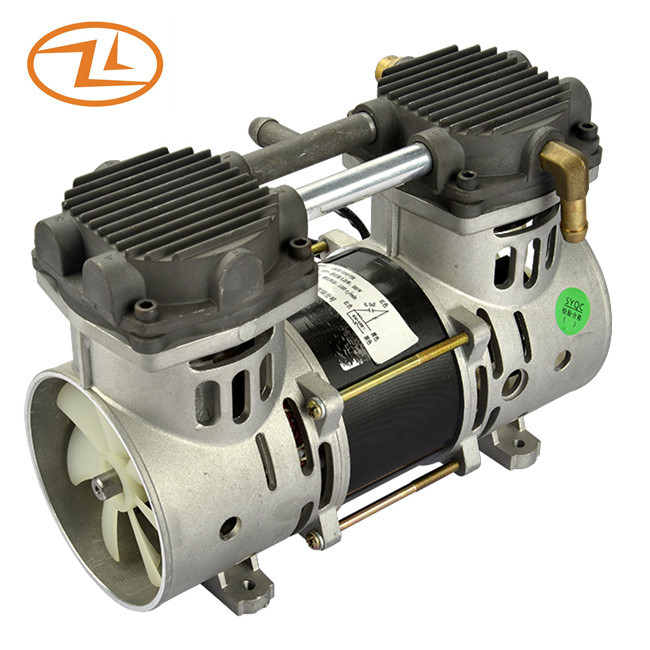

Oil Free Air Compressor For Oxygen Concentrator 5L Atomizer/Vacumm Use
Oil-free air compressor features:
Oil-less operation(clean air stream, less maintenance)
Permanently lubricated ball bearing(optimum life)
Brass valves(optimum life, consistent performance, corrosion resistance)
High performance piston seal (optimum life)
Die-cast aluminum components(strong, lightweight, durable)
Thin wall, hard coated aluminum cylinder(maxium heat transfer)
Wetted parts treated for corrosion resistance
Dynamically balanced(low operation vibration)
Thermally protected motor
Pressure relief valve included
Twin fans provide cooling air for the motor and cylinders
Low noise
Continous duty
Application: This model is mainly applied in 5L oxygen concentrator or any other atomizer use.
Specification:
| Rated voltage/frequency V/HZ | 220V/ 50HZ |
| Rated input power W | 280W |
| Starting voltage V | 200V max |
| Working air pressure PSI | 26PSI min |
| Rated flow rate L/H | 60L/M min |
| Insulation Class | CL.B |
| Protection | Thermal protector 145℃ |
| Piston bearing | Ball bearing |
| Nozzle direction | Flexible |
| Insulation resistance | The cold insulation resistance between stator and terminal shall be more than 100MΩ(tested by DC 500V megger) |
| Dielectric strength | It shall be enough to withstand with application AC 1800V/2mA/1s. No puncture. |
Drawing:
