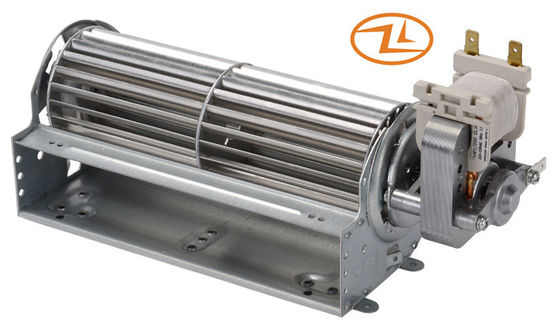

Cross Flow Fan 60-180 Blower Fan 220-240V 50/60HZ Tangential Fan For Oven Use
Cross flow fan
The cross-flow air blower is generally made up of drive motors, blowers, shells, operating support connectors, etc. The freely designed mouse cage blower cylinder processed by blades, rotor and the shell form the air flue. The special structure can make the air pass the rotor twice in the centrifugal direction.
The product has the following features:
Low back pressure
Large flow
Low noise
Resist high temperature
Product design concept suitable for complete complanation.
General specification:
Voltage----------------------100-240VAC
Frequency-------------------50/60HZ
Air flow----------------------50-400m/h
Power------------------------5-100W
Insulation Class----------- -A/E/B/F/H
Life----------------------------5000-10000Hours
Pressure----------------------8-165pa
Impeller Diameter-----------φ30-300mm
Impeller Length--------------40-1200mm
Bearing: ball bearing or sleeve bearing
Shell material: Galvanized sheet
Impeller: Aluminum
Material of bearing pedestal/axle connector: silicone
Specification:
| Rated voltage/frequency | 220-230V 50HZ |
| Starting voltage | <= 184V |
| Rated current | <= 0.3A |
| Rated power | <= 26W |
| Rated speed | 1500+/- 10% RPM |
| Rising Temp. | IEC60335-1 |
| Lock Temp. | IEC60335-1 |
| High-voltage test | 1800VAC/2mA/1S |
| Cold insulation resistance | >= 100MΩ |
| End play | 1.0mm max |
Drawing:
