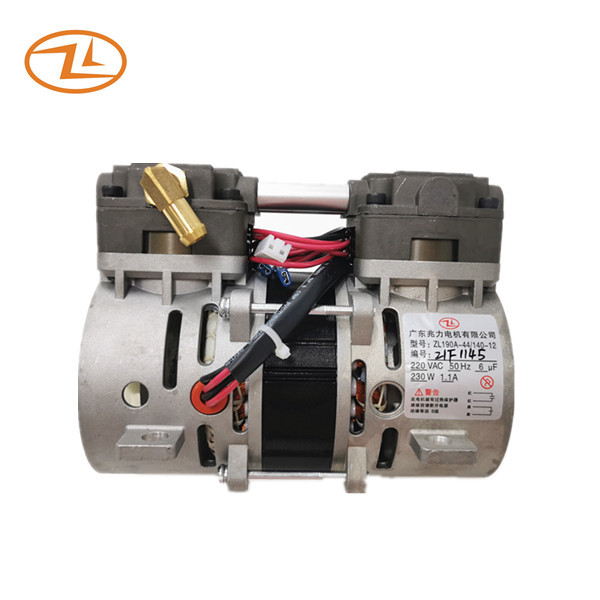

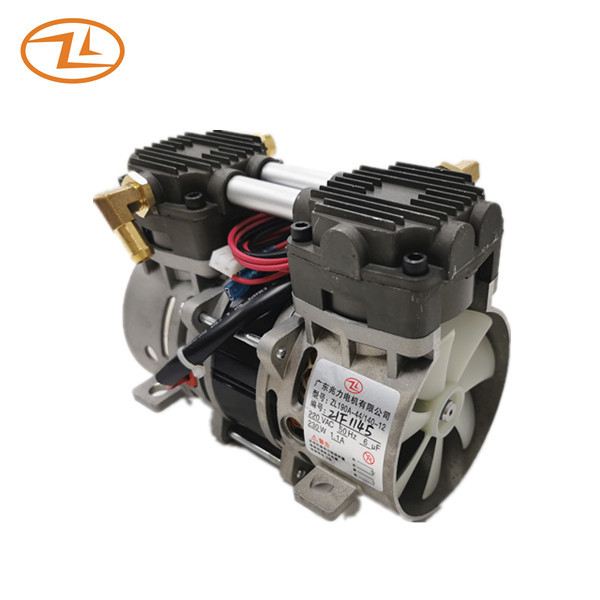

Oilless Air Compressor For Oxygen Concentrator 3L Low Noise 230W Piston Pump
Application: Suitable for Vacuum, Laboratory, Medical and medical cosmetology, Vacuum packaging, Electronic equipment, Automation, Textile and so on.
- Often for Oxygen generator 3L
Specification:
| Model | ZL190A-44-140-XX |
| Rated voltage/frequency V/HZ | 120V/ 60HZ |
| Rated speed RPM | 1650RPM |
| Rated input power W | 240W |
| Working pressure Kpa | 140kpa |
| Rated air flow L/M | >=44L/M |
| Noise | <60dbA |
| Insulation resistance | The cold insulation resistance shall be more than 100MΩ(tested by DC 500V megger) |
| Dielectric strength | It shall be enough to withstand with application AC 1800V/2mA/1s. No puncture. |
Drawing:
