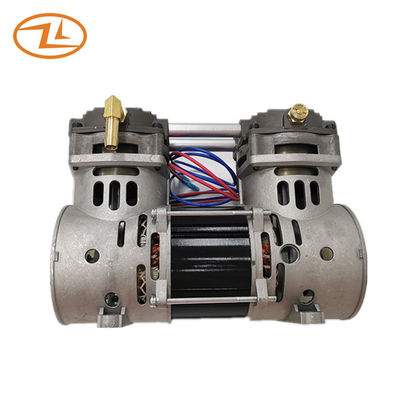

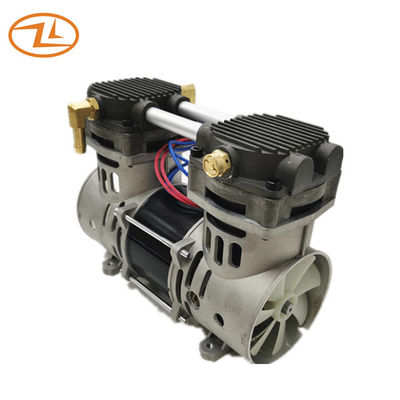

Low Noise 2 Bar 70L/M Oxygen Air Compressor Oil Free Piston Air Compressor
Specification:
| Model | ZL280A-70-200-24 |
| Rated voltage/frequency V/HZ | 220V/ 50HZ |
| Rated speed RPM | 1300RPM |
| Rated input power W | 370W |
| Working pressure Kpa | 200kpa |
| Rated air flow L/M | >70L/M |
Insulation resistance: The cold insulation resistance shall be more than 100MΩ(tested by DC 500V megger)
Dielectric strength: It shall be enough to withstand with application AC 1800V/2mA/1s. No puncture.
Oil free air compressor features:
Oil-less operation(clean air stream, less maintenance)
High performance piston seal (optimum life)
Permanently lubricated ball bearing(optimum life)
Thin wall, hard coated aluminum cylinder(maxium heat transfer)
Brass valves(optimum life, consistent performance, corrosion resistance)
Wetted parts treated for corrosion resistance
Pressure relief valve included
Thermally protected motor
Dynamically balanced(low operation vibration)
Low noise
Continous duty
Drawing:
Application: Often used for 5L or 7L Oxygen generator. It is also suitable for Vacuum, Laboratory, Medical cosmetology, Vacuum packaging, Electronic equipment, Automation, Textile and so on.
