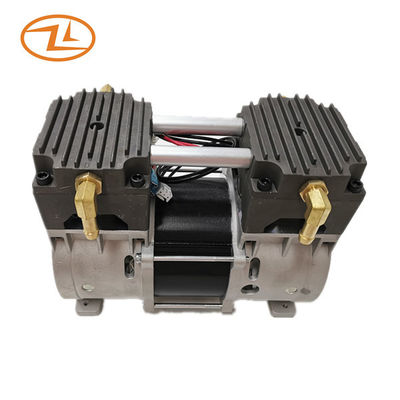

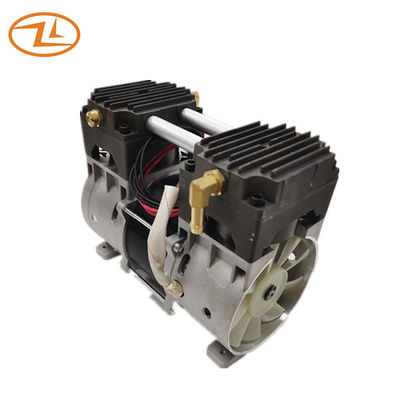

Long Life Oil Free Air Comspressor For 10L Oxygen Concentrator 220-240V 50HZ
An oil-free air compressor is characterized in an air inlet provided at a lateral open end of a crankcase of the air compressor. External air enters into the crankcase via the lateral air inlet and then enters into a cylinder above the crankcase via a check valve provided on a piston head in the cylinder. Air in the cylinder is compressed by the piston head and then discharged to an air storage tank via a single air outlet provided on a cylinder head of the cylinder. This kind of piston air compressor has many advantages as follows:
Oil-less operation(clean air stream, less maintenance)
Permanently lubricated ball bearing(optimum life)
High performance piston seal (optimum life)
Thin wall, hard coated aluminum cylinder(maxium heat transfer)
Brass valves(optimum life, consistent performance, corrosion resistance)
Die-cast aluminum components(strong, lightweight, durable)
Wetted parts treated for corrosion resistance
Pressure relief valve included
Thermally protected motor
Twin fans provide cooling air for the motor and cylinders
Dynamically balanced(low operation vibration)
Low noise
Continous duty
Specification:
| Model | ZL450A-120-200-03 | ZL450A-120-200-XX |
| Rated voltage/frequency V/HZ | 220V/ 50HZ | 120V/ 60HZ |
| Rated speed RPM | 1300RPM | 1650RPM |
| Rated input power W | 670W | 680W |
| Working pressure Kpa | 200kpa | 200kpa |
| Rated air flow L/M | >120/M | >120/M |
Drawing:
Application: Mainly used for 10L Oxygen generator or other atomizer/vacumm use.
