Vacuum Pump Nebulizer Compressor Motor Long Life 62W 50HZ

Vacuum Pump Nebulizer Compressor Motor Long Life 62W 50HZ
Features Gallery Product Description Request A Quote
Name: Compressor Nebulizer Motor
Rated Voltage: 220V 50HZ
Stack Size: 62.5x62.5mm
Lamination: 25mm
Phase: Single Phase
Number Of Poles: Two
Insulation Class: CL.B
Bearing: Ball Bearing Or Sleeve Bearings Optional
Pump Nozzle: Direction Is Flexible
Rated Load: Atomizing Chamber
Time Rating: S1 (continuous)
Packing: Customized Packing
Printing: Customized Printing
Application: Compressor Nebulizer/Vacuum Use/Inhaler
High Light:

220V 62W Nebulizer Compressor Motor


62W Nebulizer Compressor Motor


50HZ 62W Nebulizer Compressor Motor

Basic Infomation
Place of Origin: China
Brand Name: Zhaoli
Certification: UL, CUL, CE, VDE, CCC, ROHS, REACH
Model Number: YJ62/300
Payment & Shipping Terms
Packaging Details: cartons + wooden pallet
Delivery Time: 20-40 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300,000pcs per day
Product Description

Low Noise Long Life Nebulizer Compressor Motor 220V 50HZ Vacuum Pump Zhaoli Motor



Rated voltage/frequency V/HZ 220V 50HZ
Rated current A 0.55A max
Rated input power W 62W max
Starting voltage V 198V max
Insulation Class CL.B
Working air pressure PSI 10PSI min
Rated flow rate L/M 4.0L/M min
Max pressure PSI 34PSI min
Max flow rate L/M 14.0L/M
Rotation Direction CCW (view from pump side)
Protection Thermal protector 140℃
Piston bearing Ball bearing
Nozzle direction Flexible, it can be four directions
Insulation resistance The cold insulation resistance between stator and terminal shall be more than 100MΩ(tested by DC 500V megger)
Dielectric strength It shall be enough to withstand with application AC 1800V/2mA/1s. No puncture.
Life At rated load, 20 mins on, 40 mins off as one cycle. 1000 hours min.

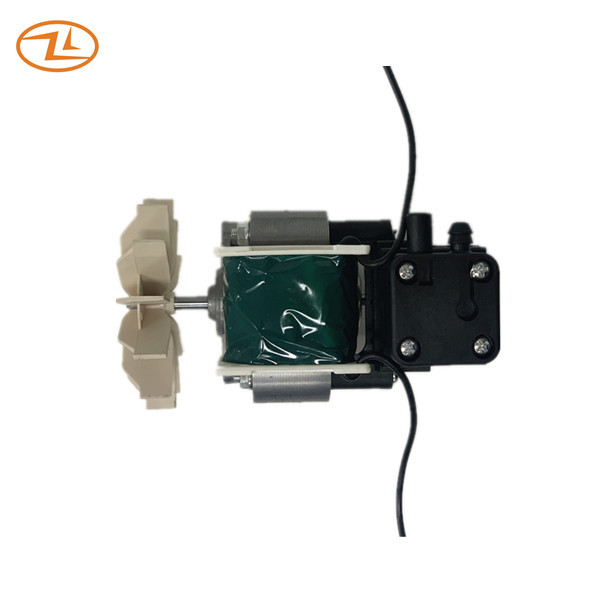

Vacuum Pump Nebulizer Compressor Motor Long Life 62W 50HZ 0


Application: Vacuum Pump, Piston Compressor nebulizer, Inhaler

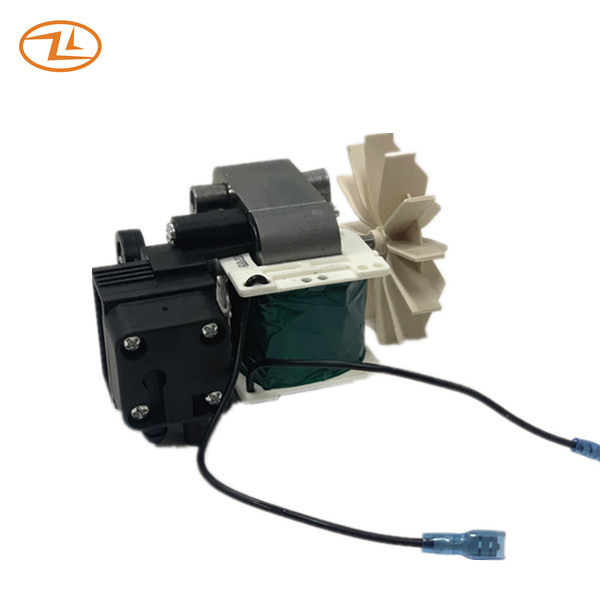

Vacuum Pump Nebulizer Compressor Motor Long Life 62W 50HZ 1
