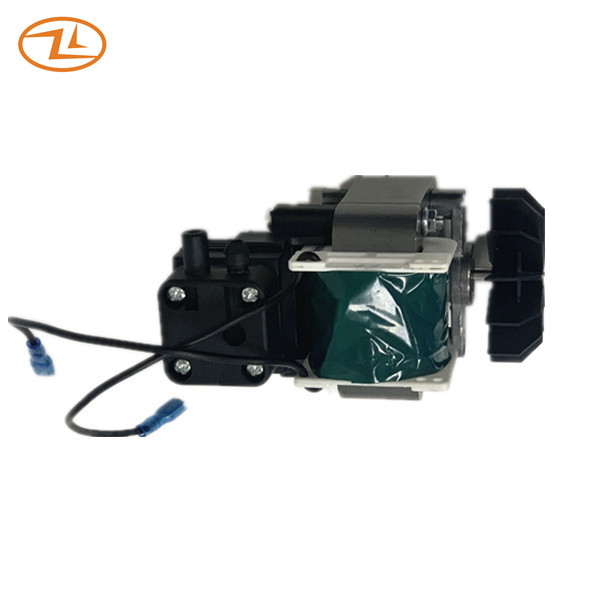

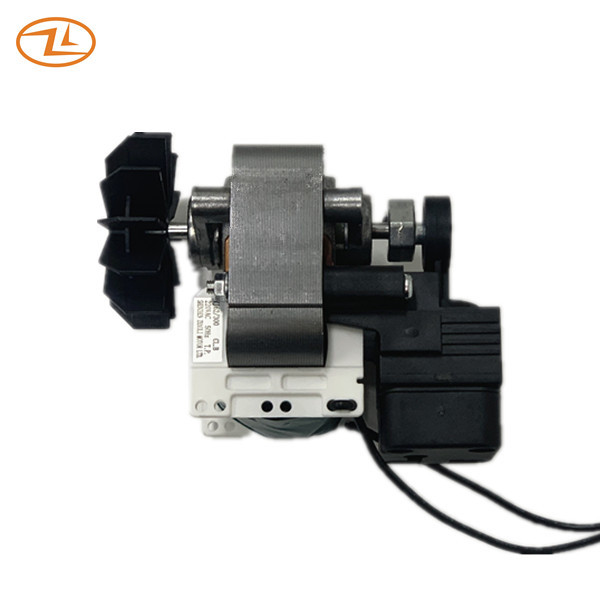

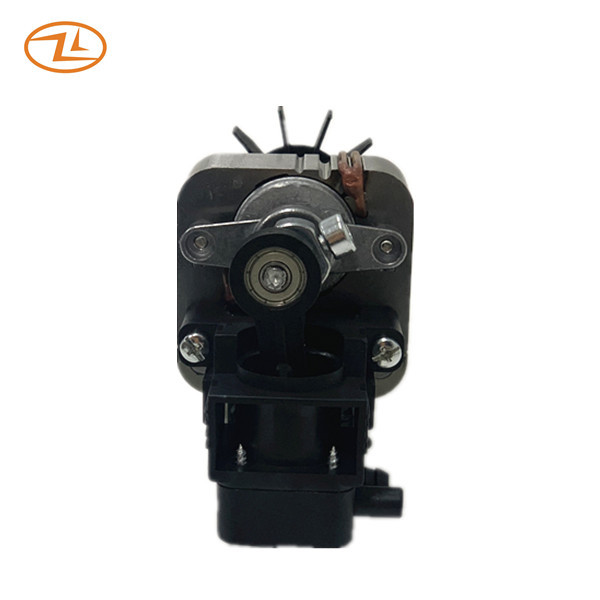

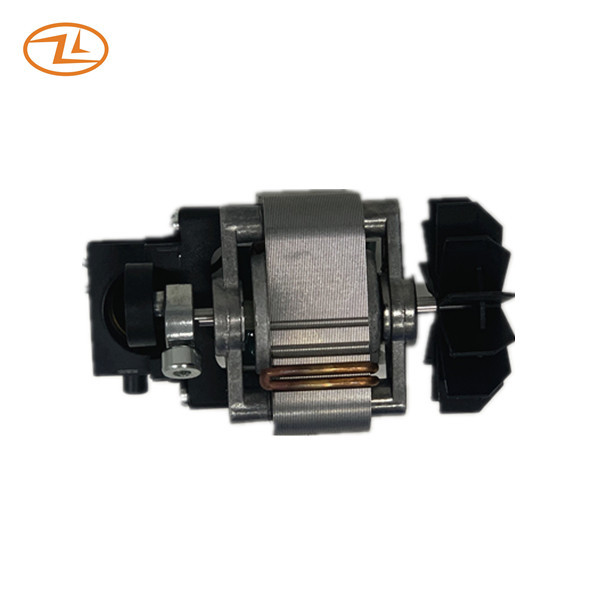

Nebulizer Compressor Motor YJ62/300 230V 50HZ Pump Nozzle Direction Flexible
Shaded pole motor is a single-phase induction motor in small ratings made self-starting by flux displacement derived by means of a permanently short-circuited, high-resistance winding or loop encircling a fraction of the pole pitch or pole piece.
A piston pump contains an accurately machined die-casted piston moving in a cylinder normally fitted with inlet and outlet valves.
Specification:
| Rated voltage/frequency V/HZ | 230V 50HZ |
| Rated current A | 0.52A max |
| Rated input power W | 60W max |
| Starting voltage V | 198V max |
| Working air pressure PSI | 8PSI min |
| Max pressure PSI | 30PSI min |
Construction:
| Insulation Class | CL.B |
| Rotation Direction | CCW (view from pump side) |
| Protection | Thermal protector 130℃ |
| Piston bearing | Ball bearing |
| Nozzle direction | Flexible, it can be four directions |
| Cooling fan size | Φ58mm |
Drawing:
Application: Compressor Nebulizer
