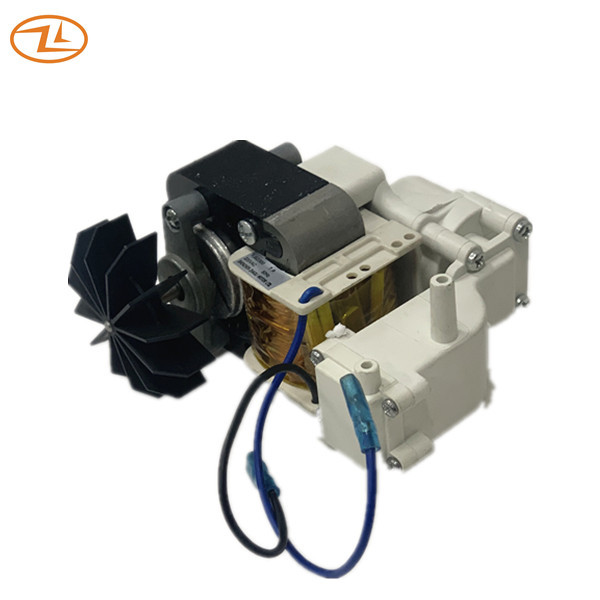

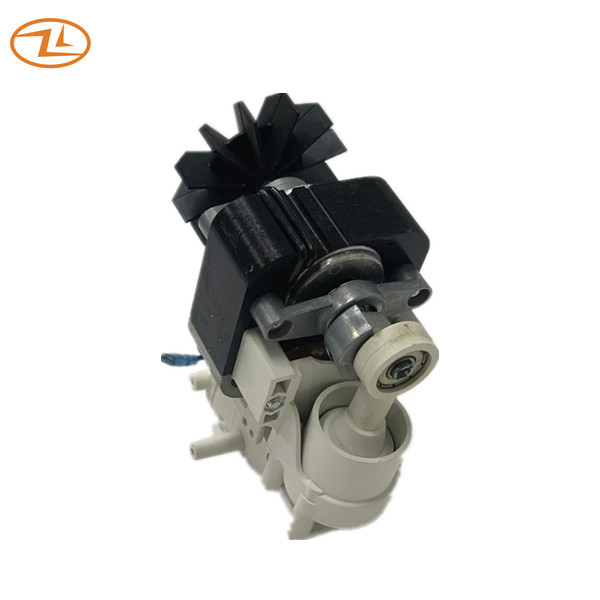

Silence Nebulizer Pump Air Compressor Nebulizer Motor With Silencer Part
This kind of air compressor is composed by shaded pole motor with piston pump. A piston pump contains an accurately machined die-casted piston moving in a cylinder normally fitted with inlet and outlet valves. This pump is specially designed with a silencer part to achieve lower noise.
Specification:
| Rated voltage/frequency V/HZ | 220V 50HZ |
| Rated current A | 0.65A max |
| Rated input power W | 60W max |
| Starting voltage V | 187V max |
| Rated speed RPM | 2500RPM min |
| Working air pressure PSI | 14 PSI min |
| Working flow rate L/M | 4.5L/M min |
| Max pressure PSI | 32PSI min |
| Max flow rate L/M | 14.5 L/M min |
| Insulation resistance | The cold insulation resistance between stator and terminal shall be more than 100MΩ(tested by DC 500V megger) |
| Dielectric strength | It shall be enough to withstand with application AC 1800V/2mA/1s. No puncture. |
| Life | At rated load, 20 mins on, 40 mins off as one cycle. 1000 hours min. |
Drawing:
Application: Air compressor nebulizer
