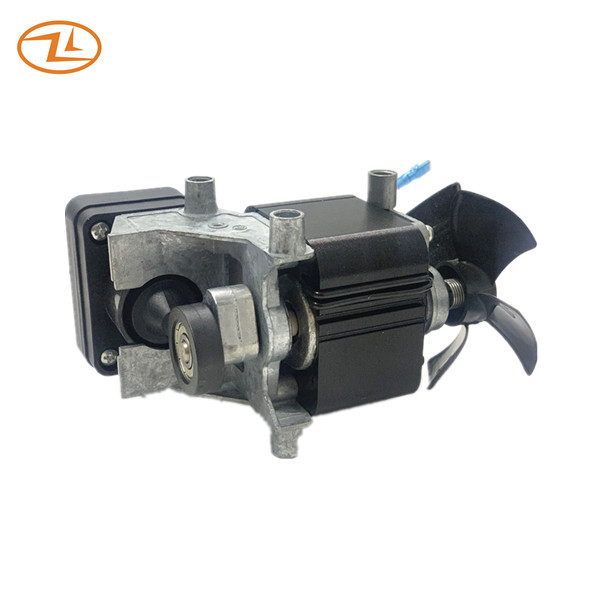

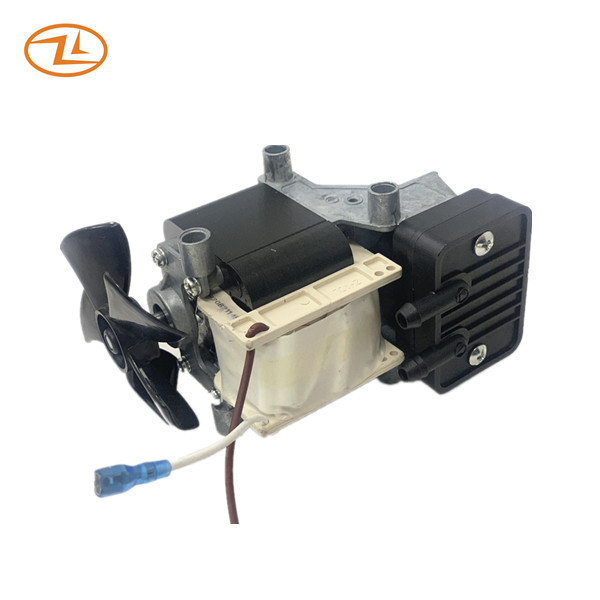

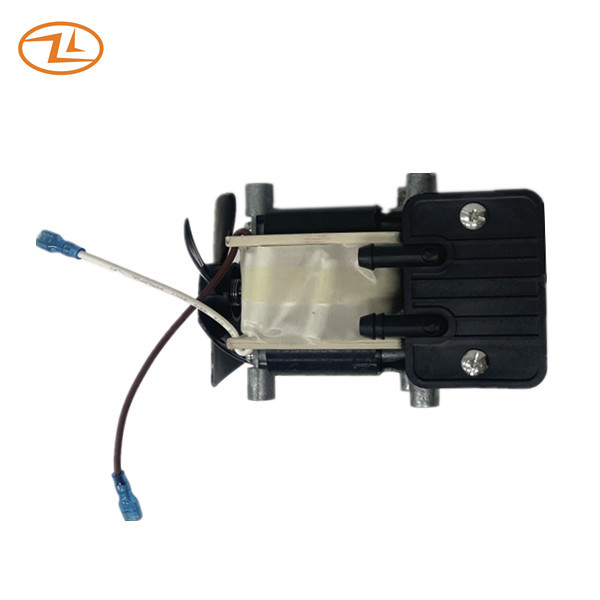

Zhaoli Motor YJ62/400 220V 50HZ Long Life High Pressure Air Pump Compressor Motor
Single Phase Shaded Pole motor is mainly composed of core, primary and secondary windings, rotor, stator and bobbin. Secondary winding is the short-circuiting ring, producing magnetic potential and forming a rotating magnetic field in the air gap. Rotor is made up of core and squirrel cage conductor. The function of squirrel cage conductor is to induce current and electromagnetic torque, realizing the conversion of electricity and motion energy.
Construction:
| Insulation Class | CL.B |
| Rotation Direction | CCW (view from pump side) |
| Protection | Thermal protector 150℃ |
| Piston bearing | Ball bearing |
| Nozzle direction | Fixed |
| Cooling fan size | Φ82mm |
Specification:
| Rated voltage/frequency V/HZ | 220-230V 50HZ |
| Rated current A | 0.63A max |
| Rated input power W | 75W max |
| Starting voltage V | 198V max |
| Rated speed RPM | 2400RPM min |
| Working air pressure PSI | 120-150Kpa |
| Working flow rate L/M | 7L/M min |
| Max pressure PSI | 45PSI min |
| Max flow rate L/M | 18 L/M min |
Drawing:
Application: Compressor Nebulizer, Suction machine
