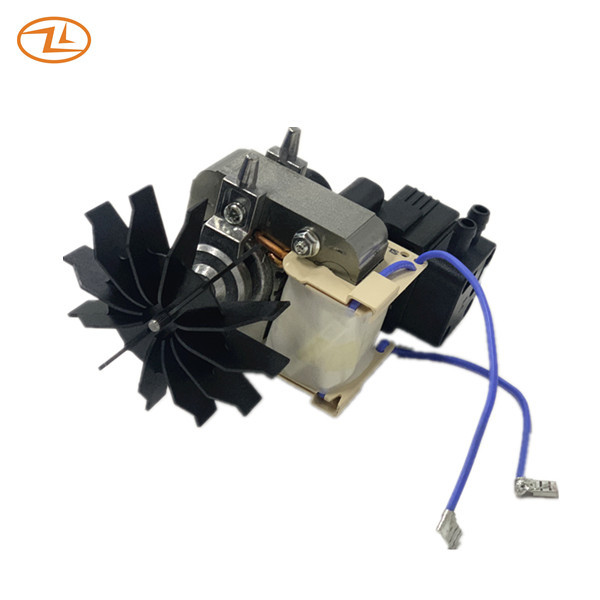

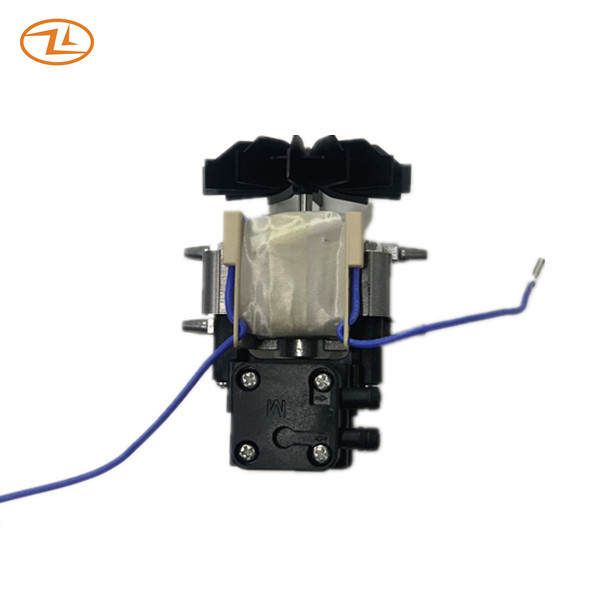

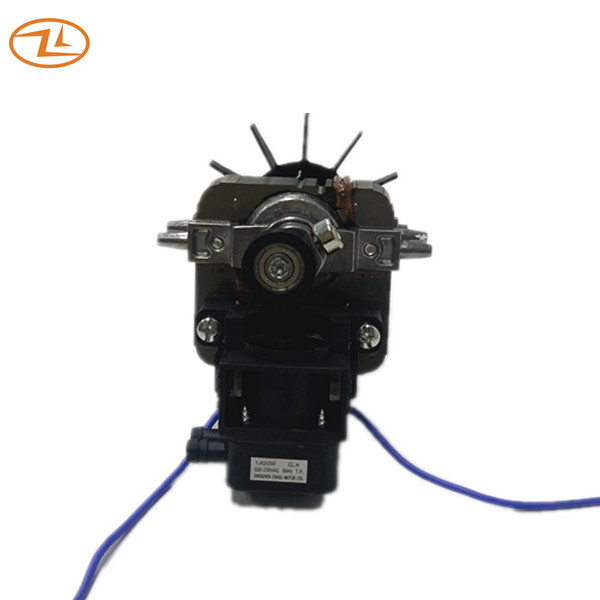

20mm Piston Compressor Nebulizer Motor Ball Bearing Flexible Nozzle Direction
Construction:
| Insulation Class | CL.H |
| Rotation Direction | CCW (view from pump side) |
| Protection | Thermal fuse 150℃ |
| Piston bearing | Ball bearing |
| Nozzle direction | Flexible |
Specification:
| Rated voltage/frequency V/HZ | 220-230V 50HZ |
| Power consumption | 230V 50HZ <110VAC |
| Max pressure Kpa | >130Kpa |
| Max flow rate L/M | >9L/M |
| Working pressure Kpa | 220V 50HZ >50Kpa |
| Dielectric strength | It shall be enough to withstand with application AC 1800V/2mA/1s. No puncture. |
| Safety | Under locked-rotor condition, no fire, no flame. |
Drawing:
Application: Compressor Nebulizer
