Nebulizer Compressor Motor Piston Compressor Motor 220V 50HZ Long Life

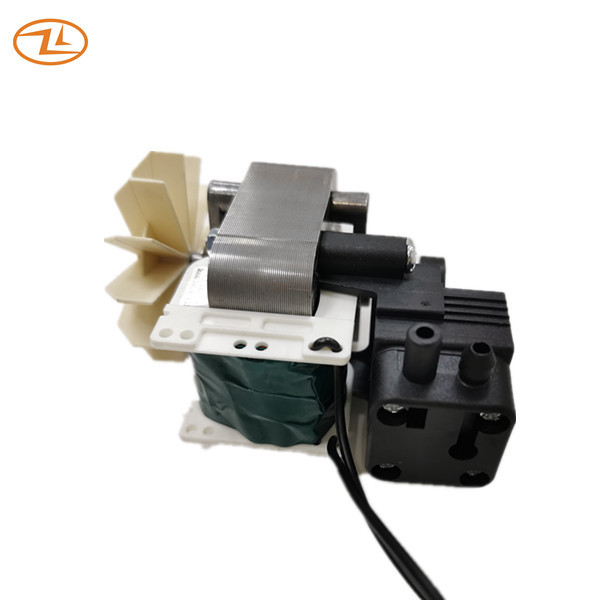

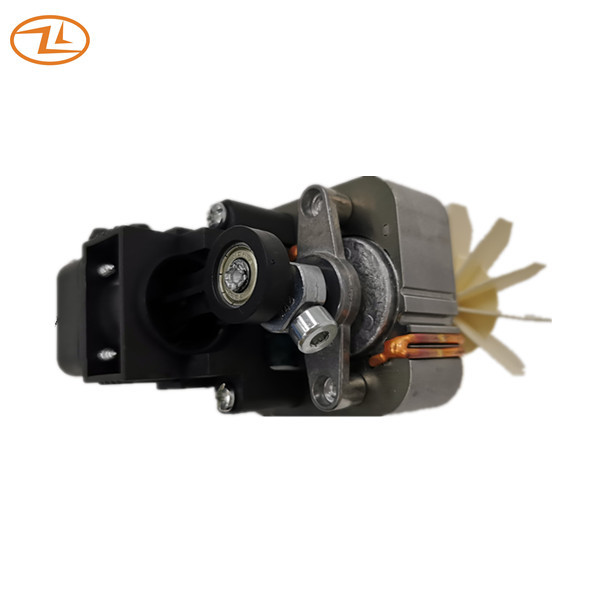

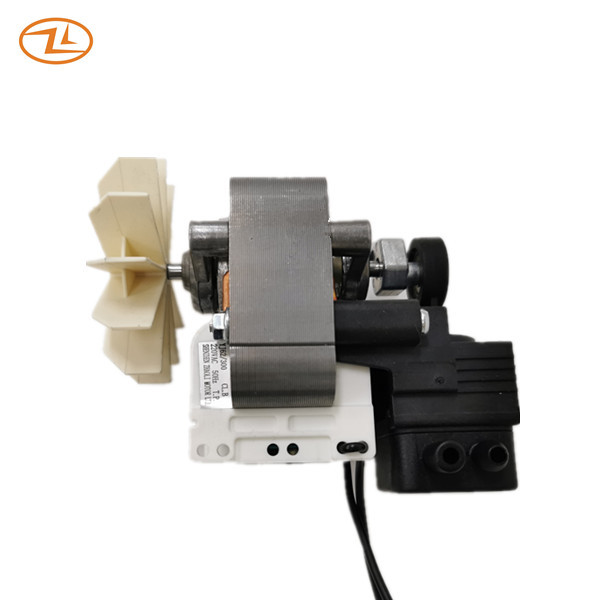

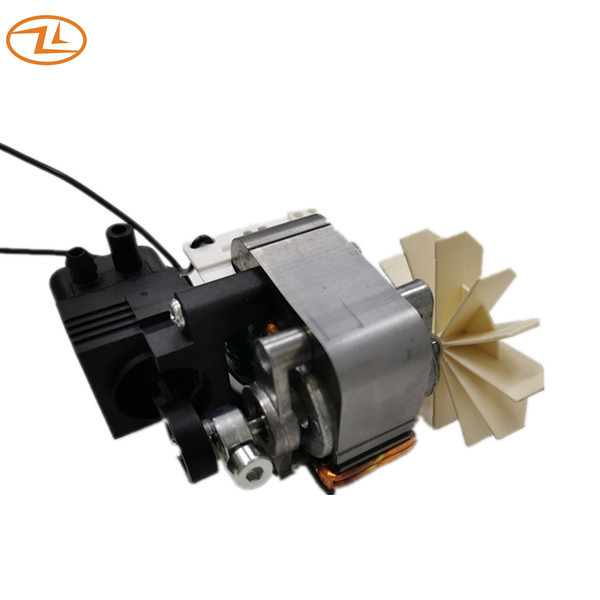

The motor is single phase shaded pole motor. Pump is designed for air compressor use. Air outlet nozzles direction is flexible.
Specification:
| Rated voltage/frequency V/HZ | 220V 50HZ |
| Rated current A | 0.57A max |
| Rated input power W | 72W max |
| Starting voltage V | 198V max |
| Working air pressure PSI | 8PSI min |
| Rated flow rate L/H | 300L/H min |
| Max pressure PSI | 35PSI min |
| Insulation resistance | The cold insulation resistance between stator and terminal shall be more than 100MΩ(tested by DC 500V megger) |
| Dielectric strength | It shall be enough to withstand with application AC 1800V/2mA/1s. No puncture. |
Drawing:
Application: Compressor nebulizer
