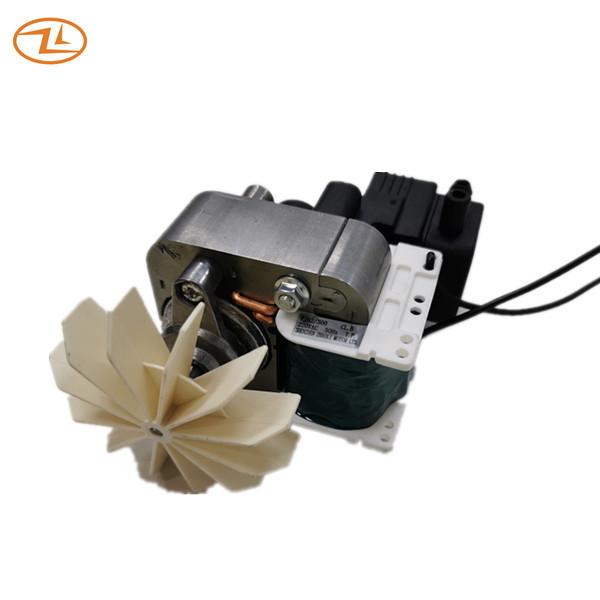

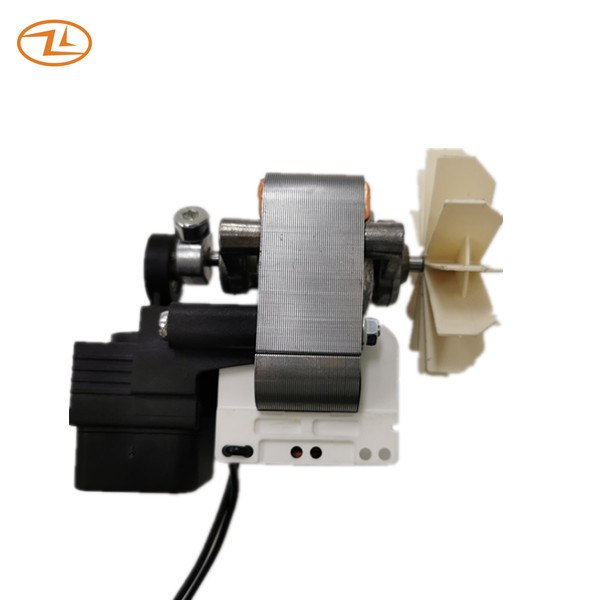

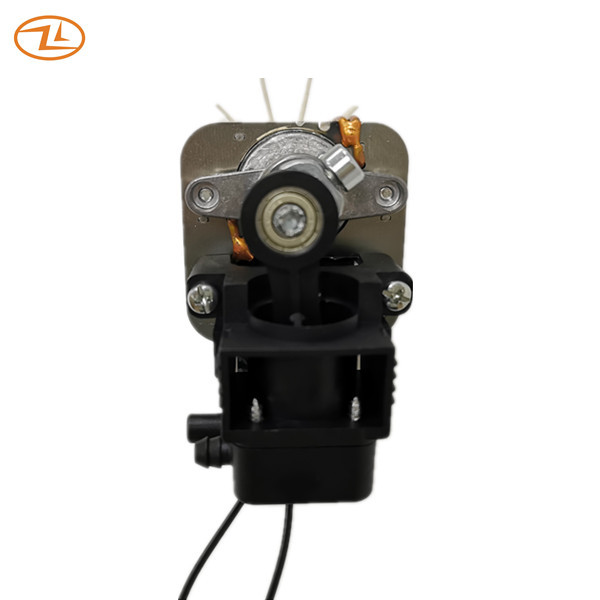

25mm Pump Piston Ball Bearing Nebulizer Compressor Motor

25mm Pump Piston Ball Bearing Nebulizer Compressor Motor
Features Gallery Product Description Request A Quote
Name: Compressor Nebulizer Motor
Rated Voltage: 220V 50HZ
Stack Size: 62.5x62.5mm
Lamination: 25.5mm
Phase: Single Phase
Number Of Poles: Two
Insulation Class: CL.B
Bearing: Ball Bearing Or Sleeve Bearings Optional
Pump Nozzle: Direction Is Flexible
Rated Load: Atomizing Chamber
Time Rating: S1 (continuous)
Packing: Customized Packing
Printing: Customized Printing
Application: Compressor Nebulizer/Vacuum Use/Inhaler
High Light:

25mm nebulizer compressor motor


ball bearing nebulizer compressor motor


25mm motor for vacuum pump

Basic Infomation
Place of Origin: China
Brand Name: Zhaoli
Certification: UL, CUL, CE, VDE, CCC, ROHS, REACH
Model Number: YJ62-25
Payment & Shipping Terms
Packaging Details: cartons + wooden pallet
Delivery Time: 20-40 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300,000pcs per day
Product Description

25mm Nebulizer Motor With Pump Piston Compressor Nebulizer Motor Ball Bearing





Rated voltage/frequency V/HZ 220V 50HZ
Working air pressure PSI 8PSI min
Rated flow rate L/H 300L/H min
Max pressure PSI 35PSI min
Protection Thermal protector 150℃
Piston bearing Ball bearing
Insulation resistance The cold insulation resistance between stator and terminal shall be more than 100MΩ(tested by DC 500V megger)
Dielectric strength It shall be enough to withstand with application AC 1800V/2mA/1s. No puncture.
Life At rated load, 20 mins on, 40 mins off as one cycle. 1000 hours min.




25mm Pump Piston Ball Bearing Nebulizer Compressor Motor 0




Application:  Piston Compressor nebulizer
