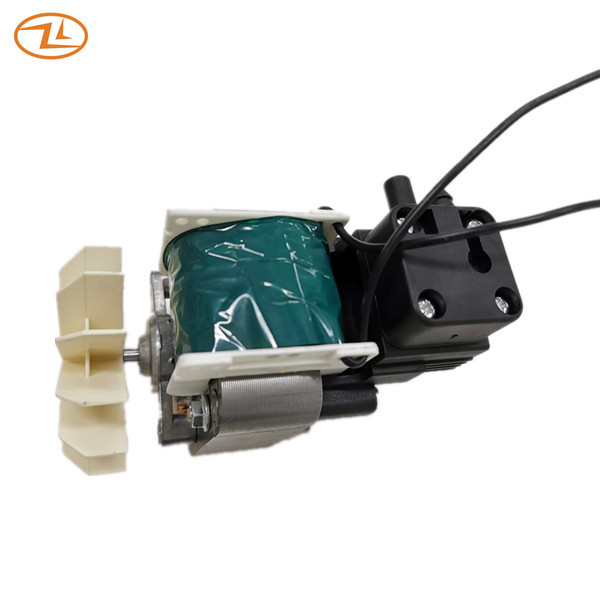

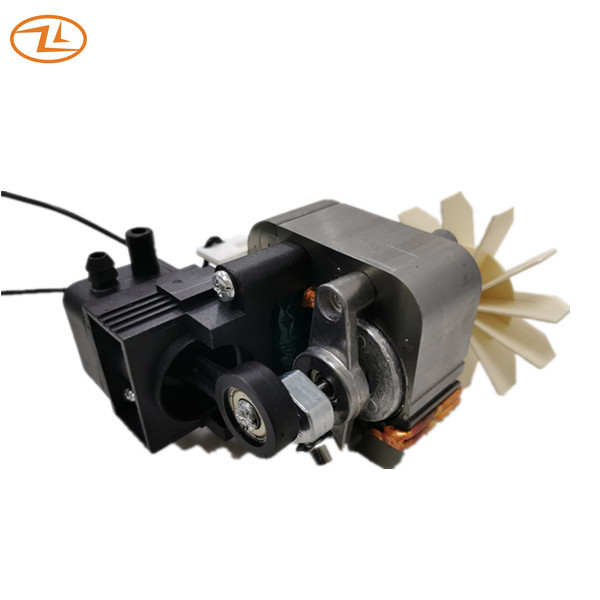

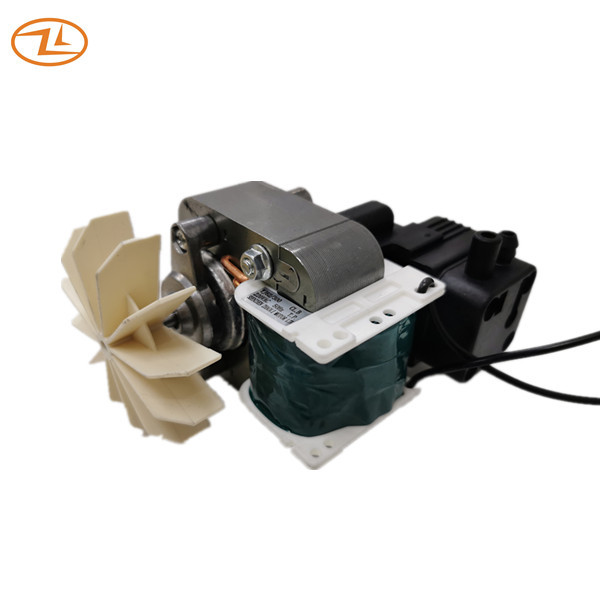

Pump With Motor For Nebulizer Compressor Nebulizer Motor High Pressure
Specification:
| Rated voltage/frequency V/HZ | 220V 50HZ |
| Rated current A | 0.57A max |
| Rated input power W | 72W max |
| Starting voltage V | 198V max |
| Working air pressure PSI | 8PSI min |
| Rated flow rate L/H | 300L/H min |
| Max pressure PSI | 35PSI min |
| Protection | Thermal protector 150℃ |
| Piston bearing | Ball bearing |
| Insulation resistance | The cold insulation resistance between stator and terminal shall be more than 100MΩ(tested by DC 500V megger) |
| Dielectric strength | It shall be enough to withstand with application AC 1800V/2mA/1s. No puncture. |
| Noise | When the pump assembly operates on the sponge that is 5cm thickness, noise is less than 75dBA at the distance of 1M assembly. |
| Life | At rated load, 20 mins on, 40 mins off as one cycle. 1000 hours min. |
Drawing:
Application: Piston Compressor nebulizer
