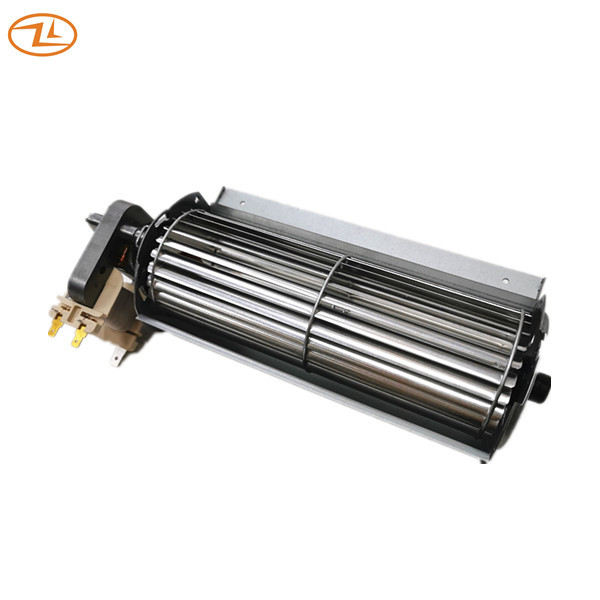

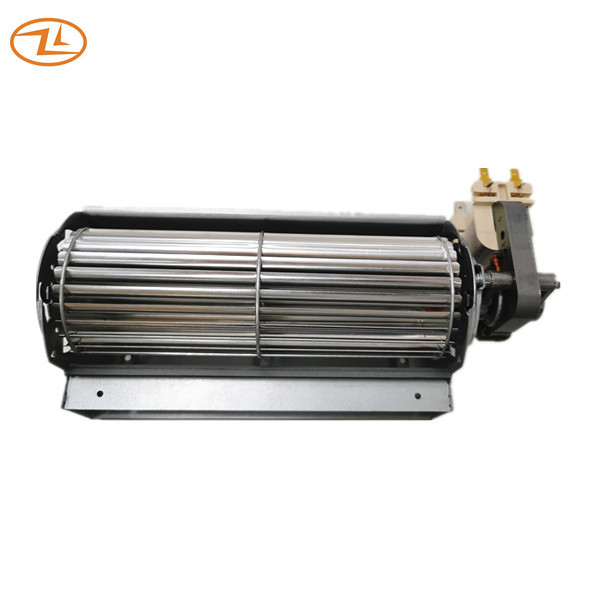

Blower Fan Cooling Fan For Oven Use 230V 50HZ High Temperature Resistant
Cross flow fan
The blower fan is generally made up of drive motors, blowers, shells, operating support connectors, etc. The freely designed mouse cage blower cylinder processed by blades, rotor and the shell form the air flue.
Specification:
| Motor Type | AC shaded pole motor YJ61-10 | |
| Blower size | 60X180mm | |
| Rated voltage/frequency | 230V 50HZ | |
| High speed | Starting voltage (on load) | <= 187V |
| Rated current (on load) | 0.179±10%A | |
| Rated power(on load) | 26±10%W | |
| Rated speed (on load) | 1500±200RPM | |
| Low speed | Rated current (on load) | 0.95±10%A |
| Rated power(on load) | 14±10%W | |
| Rated speed (on load) | 900±200RPM | |
| Rising Temp. | IEC60335-1 | |
| Lock Temp. | IEC60335-1 | |
| High-voltage test | 1800VAC/2mA/1S | |
| Cold insulation resistance | >= 100MΩ | |
| End play | 1.0mm max | |
Drawing:
Application:
Oven, Air curtain
