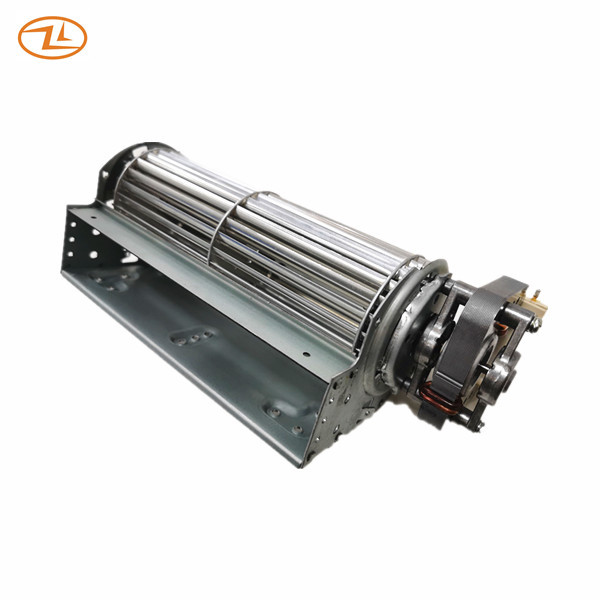

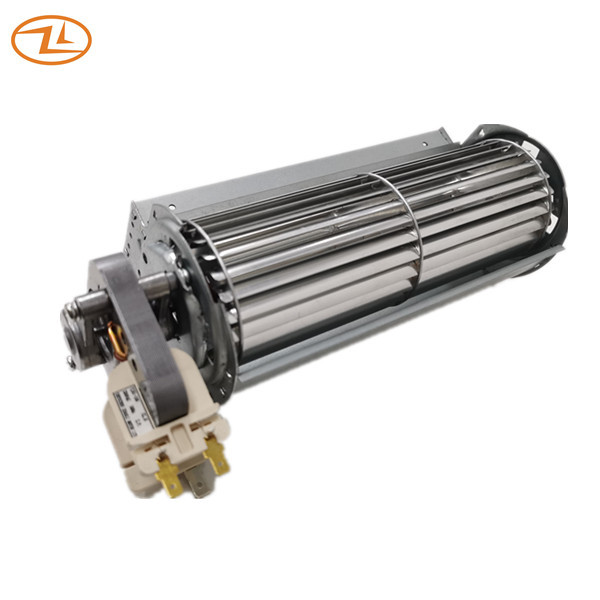

Cooling Fan Tangential Fan With Shaded Pole Motor For Oven Use 230V 50HZ CL.H
Specification:
| Motor Type | AC shaded pole motor YJ61-10 | |
| Blower size | 60X180mm | |
| Rated voltage/frequency | 220V 50HZ | |
| No Load | Rated current(no load) | 0.144±10%A |
| Rated power(no load) | 19.5±10%W | |
| Rated speed (no load) | 2700±200RPM | |
| On load | Starting voltage (on load) | <= 187V |
| Rated current (on load) | 0.179±10%A | |
| Rated power(on load) | 26±10%W | |
| Rated speed (on load) | 1500±200RPM | |
| Rising Temp. | IEC60335-1 | |
| Lock Temp. | IEC60335-1 | |
| High-voltage test | 1800VAC/2mA/1S | |
| Cold insulation resistance | >= 100MΩ | |
| End play | 1.0mm max | |
Drawing:
Application:
Oven, Air curtain
